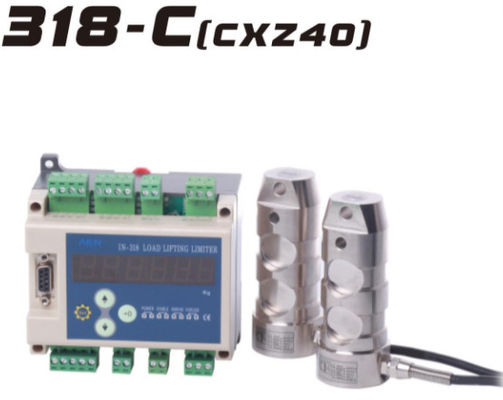

CE Hoist Overload Limiter

CE Hoist Overload Limiter
CE Hoist Overload Limiter

Large Image :  CE Hoist Overload Limiter

Product Details:
Place of Origin: China
Brand Name: AIEN
Certification: CE,ISO,TX
Model Number: 318-C(CXZ40)
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 400USD
Packaging Details: Paper Box
Delivery Time: 20 Days after advance payment
Payment Terms: T/T
Supply Ability: 2,000Set/Month
Detailed Product Description
Working Voltage: AC180-260V Rated Load: 0-2ton
Working Temperature: -20~60℃ Installation: Slot Type
High Light:

2ton hoist overload limiter

,

CE hoist overload limiter

,

6 Digit Display overload limiter

2ton Capacity Load Limiter for Building Hoist/Construction Elevator with 6 Digit Display for Overload Protection



Product Introduction:

The overload limiter is a safeguarding device, which is specially designed for buidling hoist/construction elevator. The overload limiter can make alarm with sound and light, protecting the building hoist/construction elevator from being overloaded.





Technical Patrameters



Item Parameter Item Parameter
Display mode 6-digit display Rated load 2t
Working temperature -20~60℃ Sensor working voltage DC5-12V
Operating humidity 95% Sensitivity of the sensor 1.0000Mv/v
Comprehensive error ≤1%F.S Installation Slot type
Alarm output AC250V/7A Action error ≤1%F.S
Buzzer ≥90dB
Overload early warning ≥ 95% of the rated weight(resettable); state of the relay: coil power-losing; closing of normally-closed contact; state of the buzzer: intermittent ringing (one second with two seconds interval)
Overload alarm ≥ outage happens when 100% of the rated weight lasts one second(resettable); state of the relay: coil is powered, normally-closed contact is off; state of the buzzer: rapid ringing for two seconds.
Instant alarm ≥ at 105% of the rated weight (immediate power off); state of the relay: coil is powered, normally-closed contact is off
Alarm release Alarm relieves automatically when the load is less than rated weight.



CE Hoist Overload Limiter 0



Sensor installation

CE Hoist Overload Limiter 1





Product Features:

1. Perfect solution for gondola/suspended platform's overload protection, with classic plastic shell, the load limiter is easy for installation;

2. High accuracy: Controller's measurement accuracy is better than 1%, which is much better than analog singal indicator;

3. Display: 6 digit display, 0000.00-9999.99, the limiter can acheive high accuracy weighing results;

4. Built-in battery: the overload limiter can work for 8 hours without power supply and will charge itself automatically once the power is resumed, making sure the building hoist/construction elevator is monitored all the time.

5. Dual way normally closed contact for power cut-off; extra buzzer and display can be connected to the overload limiter for convenience.

6. Support RS232/485 communications, can be connected with monitor screen or PC.

7. Black box function: the overload limiter can record the data up to 4,000messages of load/overload during operation

8. Easy debugging, just press one button to correct all the weighing date without actual weights;
