Product Details:
Payment & Shipping Terms:
|
| Steel Pipe: | Q345B High Strength Steel | Rated Load: | 2000kg Per Cart |
|---|---|---|---|
| Rated Speed: | 0-58m/min | Max. Installation Hight: | 500m |
| Max. Passenger No.: | 18 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| High Light: | 2x13kw construction hoist elevator,bevel motor construction hoist elevator,2x13kw goods hoist lift |
||

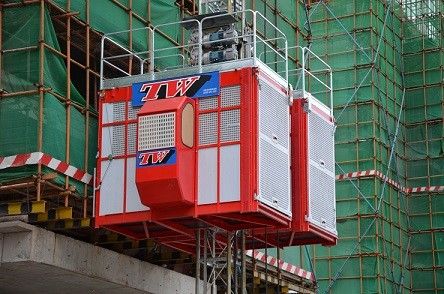

SC200/200G New Middle Speed (0-58m/min)Building Hoist/Construction Elevator with Frequency Inverte
Technical features:
MOTOR
TW hoist used bevel gear two-motor for low speed hoist.
- with 2x13kw bevel motor & gearbox, the hoist can reach speed of 58m/min.
- The transmission efficiency can reach 93%-95%, compared with the traditional worm gear motor energy saving 15%-20%.
- Using S1 duty-type motor distinctly increases the load capability which reduce the breakdown of motor.
- The material of gear is special grade steel with good quenching force, high hardness of tooth surface, good wear resistance and strong shock proof.
- All gear using grinding technology to ensure the quality of product with high precision, low noise and extend usage life.
DESIGN
- The safety device is very complete and reliable, the anti-drop safety device with national patent technology makes this product more safe.
- The driving mechanism is placed on the top of the cage, which enhances the interior space and brings great convenience to operation and transportation.
- The SC building hoist is standardized and modularized. It can also be different with the most reasonable configuration to meet the different needs of customer.
- Simple circuit of electronic control system makes an easy and reliable operation and maintenance.
- Steel structure design with scientific and rigorous calculation, meet the requirements of reasonable structure, reliable strength, light weight.
- Hot dip galvanized cages, enclosures, mast section, trolley etc.
Specifications:
| Model | SC200 |
| Loading capacity | 2000KG/cage |
| Rated speed | 0-58m/min |
| Motor & Gear Box | 2x2x13kw-- TW motor |
| Inverter | 2x45kw -- Chinese brand |
| Mast section size | 650*650*1508mm |
| Cage size | 3.2*1.5*2.1 |
| Safety device | SAJ50-1.4 |
| Hot galvanize parts | Mast section/trolley |
| Optional | Auto-landing system/ Landing door/ Lighting protection/bus bar /Inverter and energy feedback integrated system |

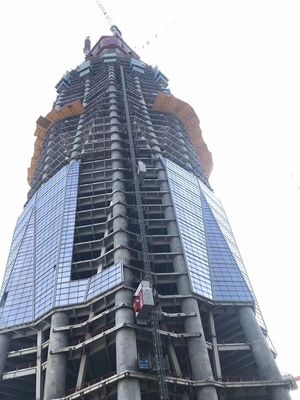

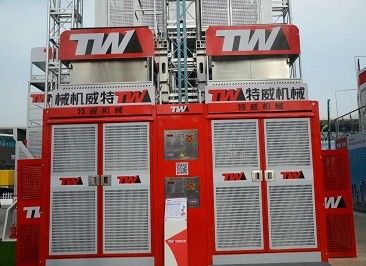

Case Show:
