Product Details:
Payment & Shipping Terms:
|
| Steel Pipe: | Q345B High Strength Steel | Rated Load: | 5000kg |
|---|---|---|---|
| Rated Speed: | 0-30m/min | Max. Installation Hight: | 250m |
| Max. Passenger No.: | 30 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| High Light: | 30m/min building site hoist,twin mast building site hoist,30m/min goods hoist lift |
||
SCE500 Twin Mast Building Hoist/Construction Elevator for Construction Materials Transportation in High Rise Buildings
Technical features:
1. Widely used in warehouse, vehicle deliver and other construction projects;
2. Twin mast design to make sure the cage running smoothly and safety;
3. Large area loading cage, heavy duty loading capacity can meet the customers basic loading requitements.
4. Special safety device braking system. With TW high efficient motors and reducers.
5. Steel structure design with scientific and rigorous calculation, meet the requirements of reasonable structure, reliable strength, light weight.
Specifications:
| Model | SCE500 |
| Loading capacity | 5000KG |
| Rated speed | 0-30m/min |
| Motor & Gear Box | 2x3x11kw Bevel Heicial Gearbox |
| Inverter | 2x37kw Schneider |
| Mast section size | 650*650*1508mm |
| Cage size | 5*6*2.3m (can be customized) |
| Safety device | SAJ70-1.4 (with braking system) |
| Hot galvanize parts | Mast section/trolley |
| Counterweight | Yes |

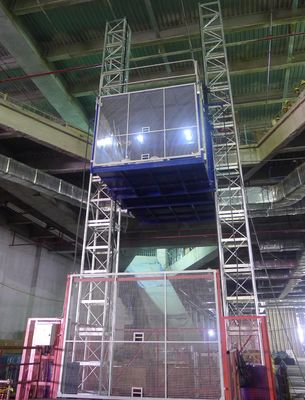

Case Show:
