Product Details:
Payment & Shipping Terms:
|
| Material: | Q355B | Dimension: | 1758x1758x3740mm |
|---|---|---|---|
| Painting: | Epoxy | Ladders: | Hot Dip Galvanized |
| Platform: | Hot Dip Galvanized | ||
| High Light: | 3740mm mast section,Epoxy painting Tower Crane Spare Parts |
||

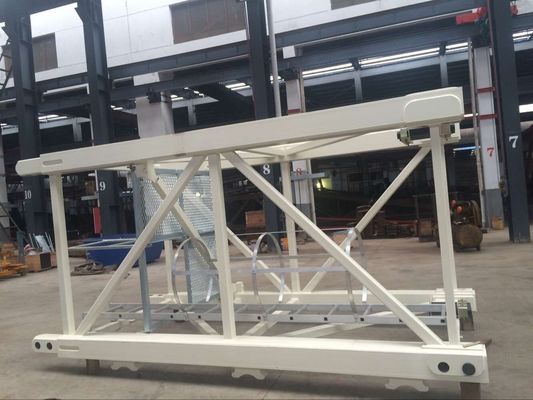

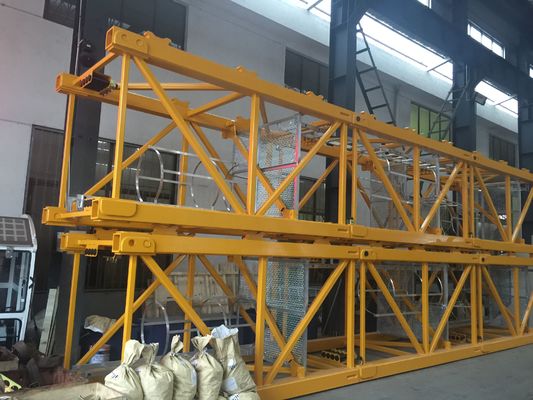

H20 Mast Section for TEREX/Comedil Tower Crane with High Precision Processing
Tower crane parts is one of our key products, and with the experiences of exclusively-producing mast sections for over 20 years, we are now providing the world with high quality tower crane parts, including different types of mast section, anchorage collar and base frame for famous brand tower cranes.
Products Specification
Type , Model: H20 Mast Section Terex/ Comedil Tower Crane
Use forTerex Comedil Tower Crane (H20A , H20B)
Materials: Q355B
Within bolts, Ladder, Platform
Suitable for Crane Model:
| AC 55-3 Tower Crane | AC 250-5 Tower Crane | CTL-140-8 Tower Crane |
| AC 60-3 Tower Crane | AC 250-6 Tower Crane | CTL-180-16 Tower Crane |
| AC 100-4 Tower Crane | AC 300-6 Tower Crane | CTT721 Tower Crane |
| AC 100-4L Tower Crane | AC 350-6 Tower Crane | CTL630 Tower Crane |
| AC 130-5 Tower Crane | AC 500-8 Tower Crane | CTT561-32 Tower Crane |
| AC 160-5 Tower Crane | AC 700-9 Tower Crane | CTL340 Tower Crane |
| AC 220-5 Tower Crane | AC 1000-9 Tower Crane | CTL400 Tower Crane |
1. ALL THE TOWER CRANE PARTS are manufactured with high strength steel, steel NO. Q355B (Chinese standard), which is equal to ST52 (German standard).
The detailed information are as below
| Q355B Chamical properties | ||||
| C | Mn | Si | P | S |
| 0.24% | 0.55% | 1.6% | 0.035% | 0.035% |
| Q345B Physical Properties | |||||
| Yield limit | Tensile strength | Tensile rate | Bending test | ||
| ≤16mm | ＞16~40mm | 470~660 Mpa | ≥21% | ≤16mm | ＞16~100mm |
| 355 Mpa | 345 Mpa | d=2a | D=3a | ||
2. Rust-removing method: ball blasting
3. Paint: High quality EPOXY paint
4. Ladders and platforms are of dip-galvanized parts
5. HIGH QUALITY OF WELDING
