5 Ton Load Capacity Crane Loading Deck MLP2600-H Width 2600mm

5 Ton Load Capacity Crane Loading Deck MLP2600-H Width 2600mm
5 Ton Load Capacity Crane Loading Deck MLP2600-H Width 2600mm
video play

Large Image :  5 Ton Load Capacity Crane Loading Deck MLP2600-H Width 2600mm

Product Details:
Place of Origin: China
Brand Name: TECHWAY
Certification: Mill Certificate & Full-load Certificate
Model Number: MLP2600-H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD8,200.00-9,800.00 per unit
Packaging Details: 3 Units in 1x20'GP, Nude in Container
Delivery Time: 40 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 100 Units per month
Detailed Product Description
Platform Width: 2.6m Painting: Sand Blasting & Epoxy Paint
Color: As Per Customer Max. Load: 5000kg
Treatment: Main Frame & Props Are With Hot Dip Galvanization Max. Outboard Length: 5.3m
High Light:

5 Ton Load Crane Loading Deck

,

Crane Loading Deck Width 2600mm

Max Load 5000kg Retractable Crane Loading Deck MLP2600-H Width 2600mm With 2/4 Props



Crane Loading Deck Features

1. Easy pull/push system

2. Max. outboard length: 5.3m

3. Max. load capacity: 5ton

4. Platform width: 3.2m

5. With adjustable props for different floor heights

6. Compact design makes the transportation & installation much easier

7. With easy locking system

8. All pins are with chains to keep them from falling or losing



Function

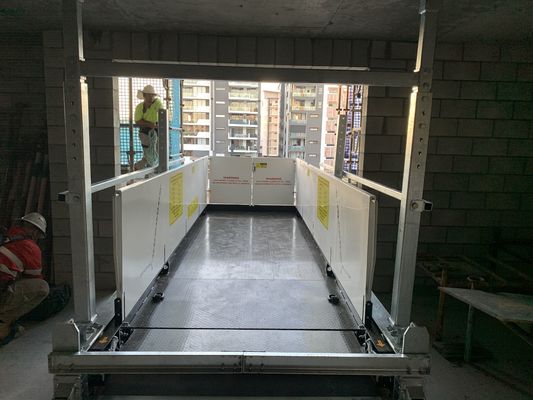

MLP series retractable loading deck is a unique product to improve materials handling efficiency and safety for the multi-storey and high rise construction sectors. It offers a cost effective method of delivering goods to different
levels of a building when used with a crane. When goods are required to be delivered toa particular floor levels,
all the decks installed above that level can be retracted, enabling the crane to operate unobstructed.



Application

The Crane Loading Deck is specially designed for coping with the challenges of multi-story construction sites. Our crane loading decks make access for tools and materials to different levels of multi-story construction sites safe and simple, while increase the working efficiency of tower cranes.



Models

The standard props allow a minimum height of 2400mm and a maximum height of 3300mm.Please consult with your dealer for other special requirements. We can design special props according to your requirements. Furthermore, MLP 2200-L, MLP 2200-H, MLP 2600,MLP 3200, MLP 4200 can also be fixed to the concrete slab with bolts through slabs according to actual needs.
