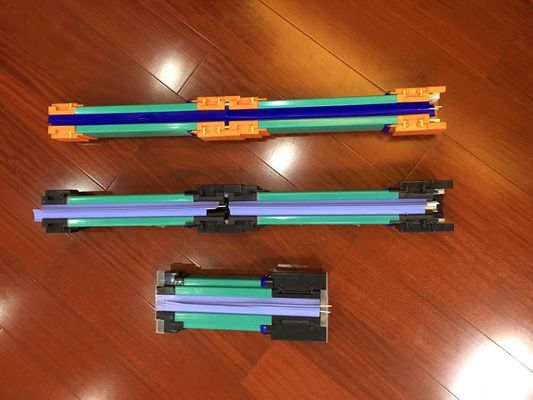

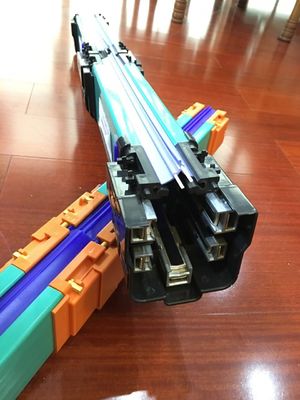

1st Generation 16mm² Bus Bar/ Sliding Contact Line for Power Transmission of Building Hoists and Overhead Cranes

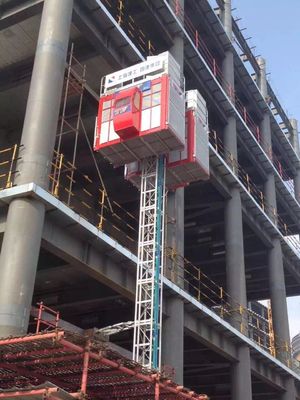

The bus bar or sliding contact line is a new type of power conductor used in building hoists/construction elevator. The bus bar is made of high-quality insulating materials and aluminum conductors.
Its structure is simple, compact, safe, reliable and helps save energy. With this, it is convenient to install and has a low failure rate, which greatly reduces the working height of the buidling hoist threshold and solves the impact of voltage drop on the operation.
Technical Data Sheet
NO | ITEM | PARAMETER |
1 | Rated Current | 80A |
2 | Rated Voltage | 380V |
3 | Dimension (pc) | 3016x60x54mm |
4 | Weight (pc) | 7.2kg |
5 | Insulation Resistance | ≥0.5MΩ |
6 | Dielectric Withstand Voltage |
AC 3750V, No Breakdown And Flickering Within 1 Min |
7 | Protection Grade Of Shell | IP10 |
8 | Electrothermal Stability | 20/rated 1s |
9 | Rated Short-time Withstand Current & Rated Peak Withstand Current |
4.5KA/6.75KA |
10 | Ambient Indexes | 1, Heat Resistance Test: Normal Type +55° C 2, Low Temperature Test : -30°C 3, Heat and Humidity Test: Relative Humidity 95%, +25°C 4, Air Pressure: 86-106KPa |
11 | Flame Resistance | Self Extinguishing |
12 | Parameter For Power Transmission Line |
Compliant with National Standard GB3049 <cable conductor> Resistance ≤0.028Ω mm2/(+20°C) |
13 | Current Collector | Traction Force: F<80N; Traveling Speed: V<100m/min |
14 | Parameter For Electric Brush |
Resistance Coefficient: 0.1-0.35; Friction Coefficient: 0.2 Contact Voltage Drop: 0.3-0.1V; Abrasion after operating 2000km <0.7mm Effective Abrasion of Brush: 4-6mm; Effective Working Pressure: 1.8-2.3N/cm2 |
Criteria | Bus Bar |
1. Durability and dependability |
As compare to the standard power Cable, Bus Bar is durable product because it has fiber casing with rubber insulation inside. Such casing protects this accessory from damage by an external force. In addition, It is fixed along the mast section which means it is stable and does not require much movement during operation of the building hoist. |
2. Life |
For continuous operation Life span of Bus Bar is at least 5 to 6 years (can also reach 8- 10 years, depending on use and storage situation) |
3. Easy Installation |
Bus Bar are installed along and together with the Mast Sections. Each bus bar section is 3meters. One person can easily lift and handle one or two Bus bar at one time. |
4. Bus Bar Recommended for High Rise Projects (Weight constraint for cable) |
As the Bus Bars are installed along with Mast sections the weight of Bus Bar is distributed on the Mast Section. |
5. Bus Bar Recommended for High Rise Projects (Air Pressure constraint for cable) |
As the Bus Bars are installed along with Mast sections, it is fixed on the mast sections and wind pressure won’t be a factor to the bus bar’s damage not will it move the bus bar from its place. |
6. Troubleshooting Damage and Replacement | Should there be any damage, troubleshooting can be done by replacing only the damaged section/s |
7. Time of Replacement |
For replacement of Damaged Bus Bar, only the damaged piece of 3mtr needs to be replaced. Which can be replaced within only 2 hrs, shortening the machine downtime considerably. |
8. Price |
Bus Bar may be slightly more expensive, but in terms of long term usage, it is more efficient as it can be used in more projects. |
