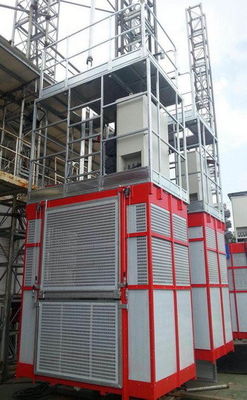

Construction 500m 96m/Min Passenger And Material Hoist Lift Bevel Heicial Gearbox heavy duty height lifter

Construction 500m 96m/Min Passenger And Material Hoist Lift Bevel Heicial Gearbox  heavy duty height lifter
Construction 500m 96m/Min Passenger And Material Hoist Lift Bevel Heicial Gearbox  heavy duty height lifter Construction 500m 96m/Min Passenger And Material Hoist Lift Bevel Heicial Gearbox  heavy duty height lifter Construction 500m 96m/Min Passenger And Material Hoist Lift Bevel Heicial Gearbox  heavy duty height lifter Construction 500m 96m/Min Passenger And Material Hoist Lift Bevel Heicial Gearbox  heavy duty height lifter Construction 500m 96m/Min Passenger And Material Hoist Lift Bevel Heicial Gearbox  heavy duty height lifter Construction 500m 96m/Min Passenger And Material Hoist Lift Bevel Heicial Gearbox  heavy duty height lifter Construction 500m 96m/Min Passenger And Material Hoist Lift Bevel Heicial Gearbox  heavy duty height lifter

Large Image :  Construction 500m 96m/Min Passenger And Material Hoist Lift Bevel Heicial Gearbox heavy duty height lifter

Product Details:
Place of Origin: China
Brand Name: TW-TECHWAY
Certification: CE
Model Number: SC200/200G
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: Negotiable
Packaging Details: Nude in Container, 2x40'HQ double cages and with hegiht of 40 meters mast section
Delivery Time: 50 days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 300 Units per month
Detailed Product Description
Material: Q345B Steel Dimension(l*w*h): 3*1.5*2.5m
Max Lifting Height: 150m Color: Optional,Bule,Lemon Yellow
Warranty: 1 Year,12month Power Source: Electric
High Light:

96m/min passenger and material hoist

,

500m passenger and material hoist

,

bevel heicial gearbox hoist lift construction

High Speed Construction Hoist Features:



1.Elevator shaft lift is specially designed, which installed into the elevator shaft.It mainly consists of: cable guide, mast section, cage, driving board, lifting device, tie-in, safety device, safety control system, resistance box and an overload device.



2. elevator shaft hoist is with smaller cage (panel type/integrated type) and with 650*200mm mast sections,making it more compact and reducing the space requirements.



3.It has double layer roof so the electrical box & driving mechansims can be protected from the falling debrises, also the double layer provides a platform for the technicians during the installation or dismantling.



4.The hoist's cart can be designed as panel type, so the cage can be put into the elevator shaft and assembled inside, no need to widen the shaft's openning.



Quick Detail for High Speed Construction Hoist



The high speed construction hoist mainly consists of: cable guide, mast section, cage, driving board, lifting device, tie-in, safety device, safety control system, resistance box and an overload device.



Compared with the standard building hoists, the elevator shaft hoist is with smaller cart (panel type/integrated type) and with 650*200mm mast sections, making it more compact and reducing the space requirements.



High Speed Construction Hoist Specifications:



Model SC200 HIGH SPEED HOIST
RATED LOAD(kg) 2000
INSTALLATION HEIGHT (m) Max. 500m
SPEED(m/min) 0-46/0-63/0-96

CAGE SIZE

(L×W×H/m)

2.3×1.5×2.5

(ASSEMBLED TYPE, FINAL SIZE IS SUBJECT TO ACTUAL DRAWING)

MOTOR(kW)

2×11 HELICAL BEVEL TYPE GEARBOOX

INVERTOR(kW) 37
MAST SECTION(mm) 650×200×1508 (HDG, SIGNLE RACK)
MAST QUANTITY THICKNESS: 4.5mm 26PCS
TIE-IN TYPE: V (SPECIAL) / TYPE VI
CABLE WITH CABLE OR BUSBAR
SAFETY DEVICE SAJ40



FAQ



Q1. How can I get the price?

A: Please kindly offer your detail requirements data first. Such as load capacity, installation height, working speed, single or double cages. Usually after get above data, we can make quotation accordingly.



Q2. How to proceed an order ?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the specifications and places deposit for formal order. Fourthly We arrange the production.



Q3: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will take charge of replace the fault spare parts with new order .Or we can ask for our overseas sales agent to the working site and help customer to fix the building hoist.

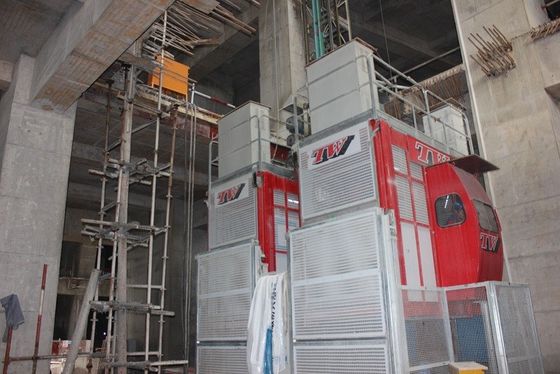

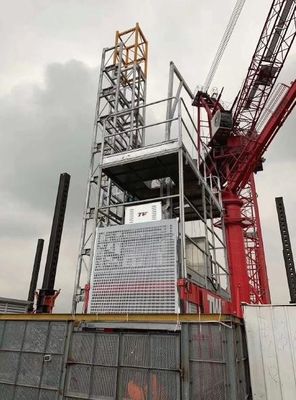

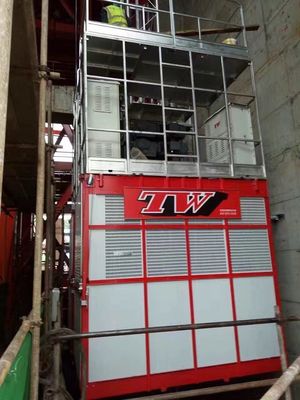

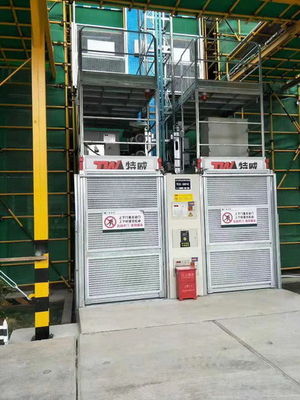

CASE SHOW



Construction 500m 96m/Min Passenger And Material Hoist Lift Bevel Heicial Gearbox  heavy duty height lifter 0Construction 500m 96m/Min Passenger And Material Hoist Lift Bevel Heicial Gearbox  heavy duty height lifter 1

Construction 500m 96m/Min Passenger And Material Hoist Lift Bevel Heicial Gearbox  heavy duty height lifter 2Construction 500m 96m/Min Passenger And Material Hoist Lift Bevel Heicial Gearbox  heavy duty height lifter 3Construction 500m 96m/Min Passenger And Material Hoist Lift Bevel Heicial Gearbox  heavy duty height lifter 4

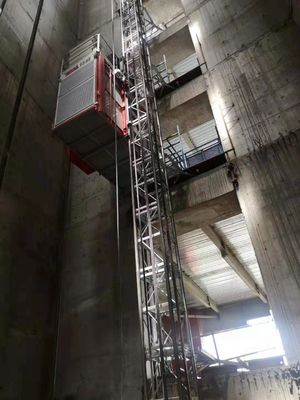

Elevator Shaft Hoist Instlled in Bankok, Thailand
