30m/Min Fixed Speed Construction Passenger Hoist Lift SC200

30m/Min Fixed Speed Construction Passenger Hoist Lift SC200
30m/Min Fixed Speed Construction Passenger Hoist Lift SC200 30m/Min Fixed Speed Construction Passenger Hoist Lift SC200 30m/Min Fixed Speed Construction Passenger Hoist Lift SC200

Large Image :  30m/Min Fixed Speed Construction Passenger Hoist Lift SC200

Product Details:
Place of Origin: China
Brand Name: TW-TECHWAY
Model Number: SC200
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: 18,800USD~80,000 USD per Unit
Packaging Details: Nude in Container, 40'HQ
Delivery Time: 60 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 500 Units Per Month
Detailed Product Description
Steel Pipe: Q345B High Strength Steel Rated Load: 2000kg
Rated Speed: 30m/min Max. Installation Hight: 250m
Max. Passenger No.: 30 Treatment: Hot Dip Galvanization+Painting
Wall Panel: Punched Aluminium Panel
High Light:

30m/min construction passenger hoist

,

fixed speed construction passenger hoist

,

30m/min passenger hoist lift

SC200 with 2 Tons Rack and Pinion Building hoist /fixed speed Passenger Hoist/ single cage hot galvanized mast and cage



Features:



1. High Efficiency Buidling Hoist for People & Materials for high rise buildings

2. Fully hot dip galvanized cage frame & spare parts

3. Full Set of Safety Devices

4. Cost saving

5. Free easy wearing parts Plus One Year Warranty



Specifications:



Model SC200
Loading capacity0 2000KG
Rated speed 30m/min
Motor & Gear Box 2x11kw  Bevel Heicial Gearbox
Inverter 37kw
Mast section size 650*650*1508mm
Cage size 3.2x1.5x2.1m
Safety device SAJ40-1.2
Hot galvanize parts Mast section/trolley
Counter weight no

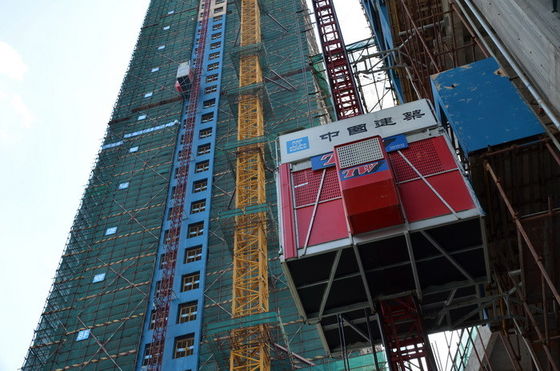

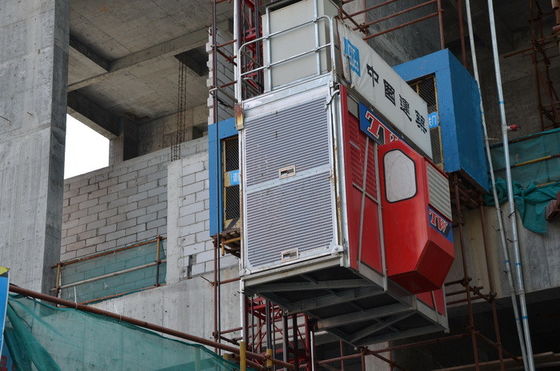

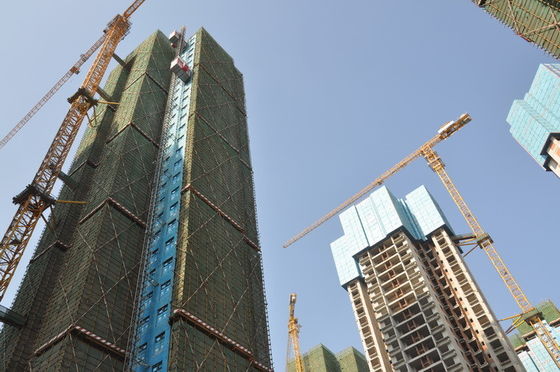

Case Show:

30m/Min Fixed Speed Construction Passenger Hoist Lift SC200 030m/Min Fixed Speed Construction Passenger Hoist Lift SC200 130m/Min Fixed Speed Construction Passenger Hoist Lift SC200 2
