Product Details:
Payment & Shipping Terms:
|
| Steel Pipe: | Q345B High Strength Steel | Rated Load: | 2000kg |
|---|---|---|---|
| Rated Speed: | 0-40m/min | Max. Installation Hight: | 300m |
| Max. Passenger No.: | 30 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| High Light: | 40m/min construction personnel hoist,2000kg construction personnel hoist,40m/min passenger material hoist |
||
SC200 -200 Double cages with Rack and Pinion Building Hoist/ 2000kgs Load with Inverter and hot galvanized masts hoist
Features:
1. Loading capacity is 2000kgs
2. Lifting speed is 0-40m/min, with inverter control type
3. Fully hot dip galvanized mast sections, tie-in , cage, foundation frame & spare parts
4. Full Set of Safety Devices: limit switch, the limit body is firmer, the contact has obvious breaking point, the limit head is collision resistant. Higher safery, eliminate the safety hidden danger caused by the upper and lower limit or not to move or damange.
5. Recommended cage inner dimension(LxWxH)(m): 2.5x1.3 x2.5; 3.0x1.3x2.5; 3.2x1.5x2.5; 3.6x1.5x2.5; 3.8x1.5x2.5; 4.0x1.5x2.5; 4.2x1.5x2.5, cage dimension is according to requirement of customer and special project
6. The cage color painting can be designed according to customer's requirement. Our standard color is : Yellow, red and blue.
7.Low maintenance cost, designed according to 2000,000 movement times, low failure rate.
Specifications:
| Model | SC200-200 |
| Loading capacity | 2000KG |
| Rated speed | 0-40m/min |
| Motor & Gear Box | 2x2x11kw |
| Inverter | 2x37kw |
| Mast section size | 650*650*1508mm |
| Cage size | 3.2x1.5x2.1m |
| Safety device | SAJ40-1.2 |
| Hot galvanize parts | Mast section/trolley |
| Counter weight | no |

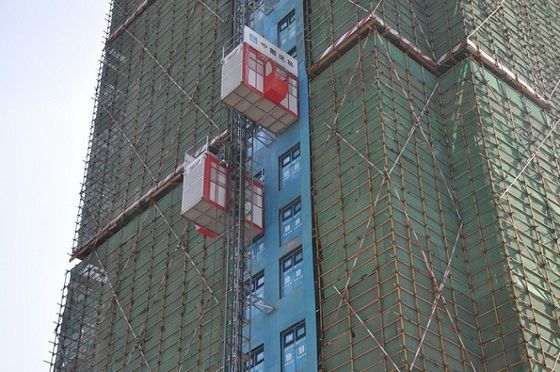

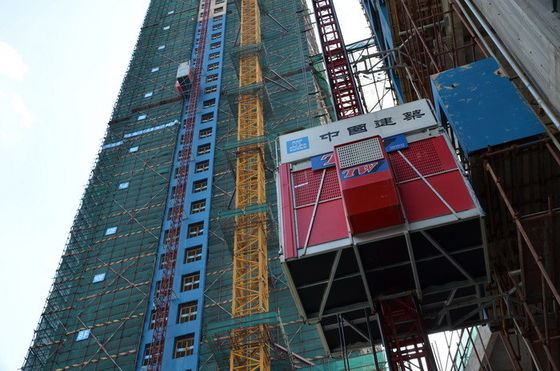

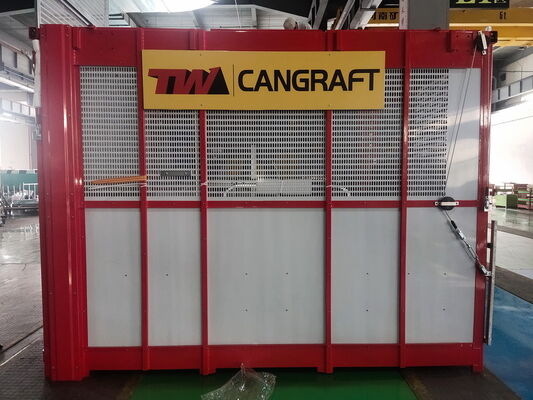

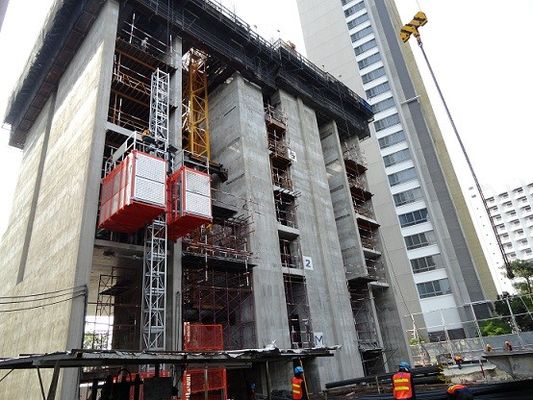

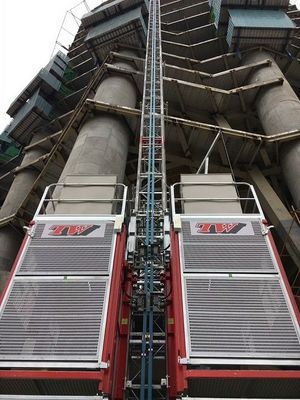

Case Show:
