Building Site 110kw 300m Rack And Pinion Construction Hoist Hot Galvanized

Building Site 110kw 300m Rack And Pinion Construction Hoist Hot Galvanized
Building Site 110kw 300m Rack And Pinion Construction Hoist Hot Galvanized Building Site 110kw 300m Rack And Pinion Construction Hoist Hot Galvanized Building Site 110kw 300m Rack And Pinion Construction Hoist Hot Galvanized

Large Image :  Building Site 110kw 300m Rack And Pinion Construction Hoist Hot Galvanized

Product Details:
Place of Origin: China
Brand Name: TW-TECHWAY
Certification: CE
Model Number: SC300
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: 18,800USD~80,000 USD per Unit
Packaging Details: Nude in Container, 40'HQ
Delivery Time: 60 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 500 Units Per Month
Detailed Product Description
Steel Pipe: Q345B High Strength Steel Rated Load: 3000kg
Rated Speed: 0-90m/min Max. Installation Hight: 300m
Max. Passenger No.: 30 Treatment: Hot Dip Galvanization+Painting
Wall Panel: Punched Aluminium Panel
High Light:

300m rack and pinion construction hoist

,

110kw rack and pinion construction hoist

,

hot galvanized building site hoist

SC300 Single cages with Rack and Pinion Building Hoist/ 3000kgs Load with Inverter and hot galvanized masts hoist



Features:

1. Loading capacity is 3000kgs

2. Lifting speed is 0-90m/min, with inverter control type

3. Fully hot dip galvanized mast sections, tie-in , cage, foundation frame & spare parts

4. Full Set of Safety Devices

5. Recommended cage inner dimension(LxWxH)(m): 2.5x1.3 x2.5; 3.0x1.3x2.5; 3.2x1.5x2.5; 3.6x1.5x2.5; 3.8x1.5x2.5; 4.0x1.5x2.5; 4. 2x1.5x2.5, cage dimension is according to requirement of customer and special project

6. The cage color painting can be designed according to customer's requirement. Our standard color is : Yellow, red and blue.

5. Free easy wearing parts Plus One Year Warranty



Specifications:



Model SC300
Loading capacity 3000KG
Rated speed 0-90m/min
Motor & Gear Box 3x22kw
Inverter 110kw
Mast section size 650*650*1508mm
Cage size 3.2x1.5x2.1m
Safety device SAJ65-2.0
Hot galvanize parts Mast section/trolley
Counter weight no

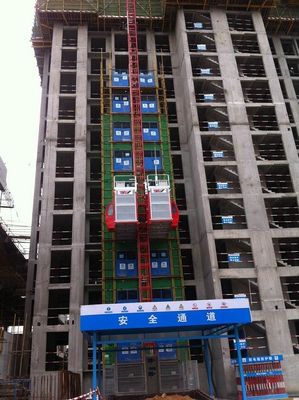

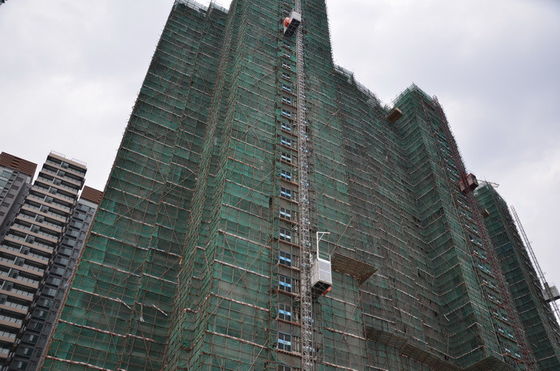

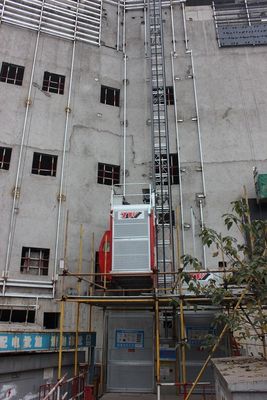

Case Show:

Building Site 110kw 300m Rack And Pinion Construction Hoist Hot Galvanized 0



Building Site 110kw 300m Rack And Pinion Construction Hoist Hot Galvanized 1Building Site 110kw 300m Rack And Pinion Construction Hoist Hot Galvanized 2Building Site 110kw 300m Rack And Pinion Construction Hoist Hot Galvanized 3
