Torsion Resistant 6mm2 4 Core Power Cable For Building Hoist

Torsion Resistant 6mm2 4 Core Power Cable For Building Hoist
Torsion Resistant 6mm2 4 Core Power Cable For Building Hoist Torsion Resistant 6mm2 4 Core Power Cable For Building Hoist

Large Image :  Torsion Resistant 6mm2 4 Core Power Cable For Building Hoist

Product Details:
Place of Origin: China
Brand Name: TECHWAY
Certification: CCC
Model Number: 3*25+2*10mm²
Payment & Shipping Terms:
Minimum Order Quantity: 500m
Price: Negotiable
Packaging Details: Pallet in Container, Less Container Loading
Delivery Time: 15 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 20,000m per month
Detailed Product Description
Cross Section (mm²): 6-25mm²
High Light:

torsion resistant 4 core power cable

,

6mm2 4 core power cable

,

6mm2 hoist power cable

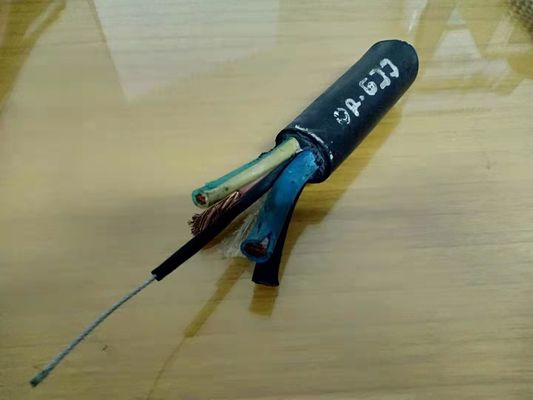

4 Cores Power Cable with Reinforced Steel Wire Rope Inside for Building Hoist Cable Trolley or Cable Basket



Building Hoist Power Cable with Reinforced Steel Wire Rope Inside

The power cable is specially designed for building hoist and tower crane basing on the extra heavy duty carried by those machines. It can be used at rated average voltage 450/750V. With reinforced steel wire rope inside, this cable has super tension strength, better anti-bending and torsion resistance ability.



By changing the combination of rubber formula, the resistance to impact and reiction is greatly increased while the cable is also capable of undertaking greater mechanical force. Comparing to general flexible rubber cable, we are more suitable for equipment used in contruction site.



Conductor: Electrolytic Copper



Insulation: Thermalsetting Rubber (Type CPE-1)

The standard color of insulation shealth includes: Yellow, White, Black, Red, Blue, Green, Brown or can be customized according to your needs



Product advantages: It has the advantages of excellent tensile property, excellent torsion resistance, no package, continuous core, wear resistance, etc.

Products application: For rated voltage 450/750V and below the lift (elevator construction) or other heavy electrical equipment, mobile power supply connection for the dynamic laying the pulley lift, able to withstand greater force and anti-torque.



Torsion Resistant 6mm2 4 Core Power Cable For Building Hoist 0

Standard Cross Section (mm2)
Model 3 Cores 4 Cores 5 Cores
YC/T 10-25 6-26 6-26
YCW/T 10-25 6-26 6-26



Model Name Application
YC/T Special Cable for Lifting Machinery Tower Crane, Cable Drum, Building Hoist, Lifting Equipment
YCW/T Special Cable for Lifting Machinery Tower Crane, Cable Drum, Building Hoist, Lifting Equipment, suitable for outdoor or places with oil/grease dirt







Torsion Resistant 6mm2 4 Core Power Cable For Building Hoist 1



Torsion Resistant 6mm2 4 Core Power Cable For Building Hoist 2

Torsion Resistant 6mm2 4 Core Power Cable For Building Hoist 3
