Reinforced Steel Crane Electrical Cable , 10mm2 3 Core Power Cable

China GUANGZHOU TECHWAY MACHINERY CORPORATION certification
China GUANGZHOU TECHWAY MACHINERY CORPORATION certification
TW is my very reliable partner for building hoist, we have been working with each other since year 2015, and I am very happy with their performance and support. Very glad they have newly opened the most advanced production facilities in China, and hope I could be there for their official ceremony once the COVID is over.

—— Lederberg Sha***

Their material loading bay is really fantastic, with their qualified products, now we are expanding our rental & sales business from Sydney to more cities in Australia.

—— Jay JAW***

I'm Online Chat Now

Reinforced Steel Crane Electrical Cable , 10mm2 3 Core Power Cable

Reinforced Steel Crane Electrical Cable , 10mm2 3 Core Power Cable
Reinforced Steel Crane Electrical Cable , 10mm2 3 Core Power Cable Reinforced Steel Crane Electrical Cable , 10mm2 3 Core Power Cable

Large Image :  Reinforced Steel Crane Electrical Cable , 10mm2 3 Core Power Cable

Product Details:
Place of Origin: China
Brand Name: TECHWAY
Certification: CCC
Model Number: 3*10
Payment & Shipping Terms:
Minimum Order Quantity: 600m
Price: Negotiable
Packaging Details: Pallet in Container, Less Container Loading
Delivery Time: 15 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 20,000m per month
Detailed Product Description
Cross Section (mm²): 6-25mm²
High Light:

reinforced steel crane electrical cable

,

10mm2 crane electrical cable

,

10mm2 3 core power cable

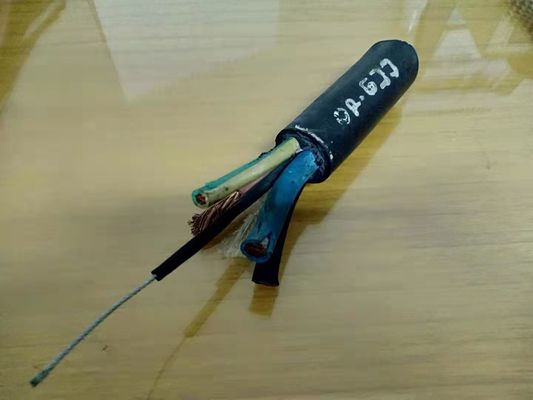

3 Cores Power Cable with Reinforced Steel Wire Rope Inside for Building Hoist Cable Trolley or Cable Basket



Building Hoist Power Cable with Reinforced Steel Wire Rope Inside

The power cable is specially designed for building hoist and tower crane basing on the extra heavy duty carried by those machines. It can be used at rated average voltage 450/750V. With reinforced steel wire rope inside, this cable has super tension strength, better anti-bending and torsion resistance ability.



By changing the combination of rubber formula, the resistance to impact and reiction is greatly increased while the cable is also capable of undertaking greater mechanical force. Comparing to general flexible rubber cable, we are more suitable for equipment used in contruction site.



Conductor: Electrolytic Copper



Insulation: Thermalsetting Rubber (Type CPE-1)

The standard color of insulation shealth includes: Yellow, White, Black, Red, Blue, Green, Brown or can be customized according to your needs



Product advantages: It has the advantages of excellent tensile property, excellent torsion resistance, no package, continuous core, wear resistance, etc.

Products application: For rated voltage 450/750V and below the lift (elevator construction) or other heavy electrical equipment, mobile power supply connection for the dynamic laying the pulley lift, able to withstand greater force and anti-torque.



Reinforced Steel Crane Electrical Cable , 10mm2 3 Core Power Cable 0

Standard Cross Section (mm2)
Model 3 Cores 4 Cores 5 Cores
YC/T 10-25 6-26 6-26
YCW/T 10-25 6-26 6-26



Model Name Application
YC/T Special Cable for Lifting Machinery Tower Crane, Cable Drum, Building Hoist, Lifting Equipment
YCW/T Special Cable for Lifting Machinery Tower Crane, Cable Drum, Building Hoist, Lifting Equipment, suitable for outdoor or places with oil/grease dirt







Reinforced Steel Crane Electrical Cable , 10mm2 3 Core Power Cable 1



Reinforced Steel Crane Electrical Cable , 10mm2 3 Core Power Cable 2

Reinforced Steel Crane Electrical Cable , 10mm2 3 Core Power Cable 3
