GUANGZHOU TECHWAY MACHINERY CORPORATION
Home ProductsConstruction Hoist Elevator

Bevel Motor Construction Hoist Elevator

China GUANGZHOU TECHWAY MACHINERY CORPORATION certification
China GUANGZHOU TECHWAY MACHINERY CORPORATION certification
TW is my very reliable partner for building hoist, we have been working with each other since year 2015, and I am very happy with their performance and support. Very glad they have newly opened the most advanced production facilities in China, and hope I could be there for their official ceremony once the COVID is over.

—— Lederberg Sha***

Their material loading bay is really fantastic, with their qualified products, now we are expanding our rental & sales business from Sydney to more cities in Australia.

—— Jay JAW***

I'm Online Chat Now

Bevel Motor Construction Hoist Elevator

Bevel Motor Construction Hoist Elevator
Bevel Motor Construction Hoist Elevator Bevel Motor Construction Hoist Elevator Bevel Motor Construction Hoist Elevator Bevel Motor Construction Hoist Elevator Bevel Motor Construction Hoist Elevator

Large Image :  Bevel Motor Construction Hoist Elevator

Product Details:
Place of Origin: China
Brand Name: TW-TECHWAY
Certification: CE
Model Number: SC200/200G
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: 18,800USD~80,000 USD per Unit
Packaging Details: Nude in Container, 40'HQ / 20'GP
Delivery Time: 40 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 500 Units Per Month
Detailed Product Description
Steel Pipe: Q345B High Strength Steel Rated Load: 2000kg Per Cart
Rated Speed: 0-96m/min Max. Installation Hight: 500m
Max. Passenger No.: 18 Treatment: Hot Dip Galvanization+Painting
Wall Panel: Punched Aluminium Panel
High Light:

bevel motor Construction Hoist Elevator

,

500m Construction Hoist Elevator

,

500m passenger lift for construction site

 SC200/200G highSpeed (0-96m/min)Building Hoist/Construction Elevator with Frequency Inverter



TW-TECHWAY Construction Elevator is the Top Sales Brand in China, with CE certificate.

Thanks to our continuous investment & innovation, we had successfully built the most advanced construction elevator/building hoist production facility in China! The first fully-automated production line equipped with the latest A.I technology in the country.Every year we are supplying more than 6000 units of building hoists/construction elevators to the whold world.





Technical features:



MOTOR



TW hoist used bevel gear two-motor for low speed hoist.

- with 2x3x18.5kw bevel motor & gearbox, the hoist can reach speed of 96m/min.

- The transmission efficiency can reach 93%-95%, compared with the traditional worm gear motor energy saving 15%-20%.

- Using S1 duty-type motor distinctly increases the load capability which reduce the breakdown of motor.

- The material of gear is special grade steel with good quenching force, high hardness of tooth surface, good wear resistance and strong shock proof.

- All gear using grinding technology to ensure the quality of product with high precision, low noise and extend usage life.





DESIGN

- The safety device is very complete and reliable, the anti-drop safety device with national patent technology makes this product more safe.

- The driving mechanism is placed on the top of the cage, which enhances the interior space and brings great convenience to operation and transportation.

- The SC building hoist is standardized and modularized. It can also be different with the most reasonable configuration to meet the different needs of customer.

- Simple circuit of electronic control system makes an easy and reliable operation and maintenance.

- Steel structure design with scientific and rigorous calculation, meet the requirements of reasonable structure, reliable strength, light weight.

- Hot dip galvanized cages, enclosures, mast section, trolley etc.









Specifications:



Model SC200-200
Loading capacity 2000KG/cage
Rated speed 0-96m/min
Motor & Gear Box 2x3x18.5kw--SEW/NORD
Inverter 2x110kw---SIEMENS /SCHNEIDER
Mast section size 650*650*1508mm
Cage size 3.2*1.5*2.1
Safety device SAJ50-2.0
Hot galvanize parts Mast section/trolley/cage/tie-ins/enclosure
Optional Auto-landing system/ Landing door/ Lighting protection/bus bar /Inverter and energy feedback integrated system

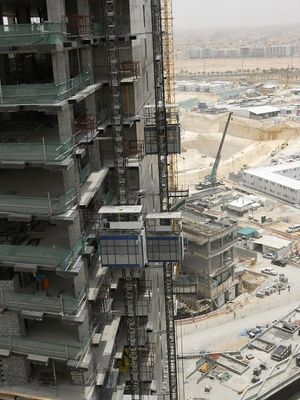

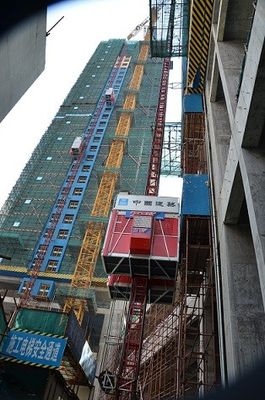

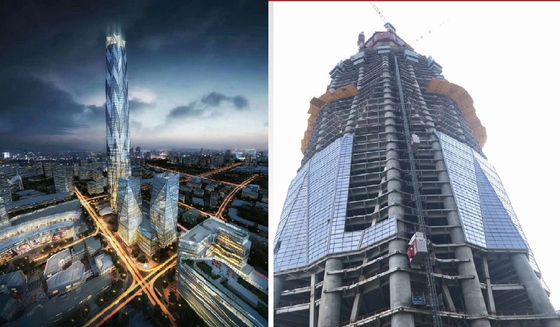

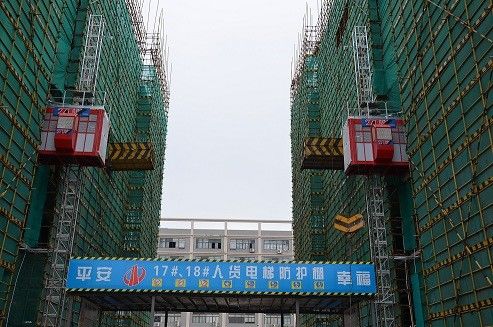

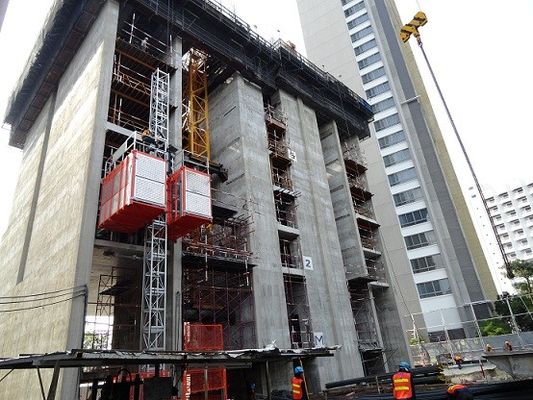

Case Show:

Bevel Motor Construction Hoist Elevator 0Bevel Motor Construction Hoist Elevator 1

Bevel Motor Construction Hoist Elevator 2
