2000kg/Cage Hoist Building Construction

Brand Name:	TW-TECHWAY
Model Number:	SC200
MOQ:	1Unit
Price:	18,800USD~80,000 USD per Unit
Payment Terms:	L/C, T/T
Supply Ability:	500 Units Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Steel Pipe:

Q345B High Strength Steel

Rated Load:

2000kg Per Cage

Rated Speed:

0-33m/min

Max. Installation Hight:

500m

Max. Passenger No.:

Treatment:

Hot Dip Galvanization+Painting

Wall Panel:

Punched Aluminium Panel

Packaging Details:

Nude in Container, 40'HQ + 20'GP

Supply Ability:

500 Units Per Month

Highlight:

2000kg/cage hoist building construction

37kw hoist building construction

37kw construction material elevator

Product Description

Inclined hoist 2000kg single cage Building Hoist/customized hoist with Frequency inverter used for tower,chimney

Technical features:

1. Welding structure adopts a special clamping fixture. Welded cage is completely hot dip galvanized and then painted to make it more anti-rust and beautiful

2. Cage with perforated aluminum and operation cab.

3. Size 650X650x1508, thickness is 4.5/6.3/8/10, According to user needs the surface of mast can spray paint processing or hot-dip zinc treatment Rack is painted.

4. Standard configuration: single door double open the door .Other configuration: single door +flip door, single door double door side door .Configuration is optional according to the customers need

5. Cable guide device :cable basket /sliding contact line/cable trolley etc.

6. Energy saving, small start up current, adjustable speed, frequency conversion control system and smooth braking, low mechanical wear and tear.

Specifications:

Model	SC200
Loading capacity	2000KG/cage
Rated speed	0-33m/min
Motor & Gear Box	2x11kw Chinese brand /SEW/NORD
Inverter	37kw Chinese brand/Siemens/Schneider
Mast section size	6506501508mm
Cage size	3.21.52.1 (customized)
Safety device	SAJ40-1.2
Hot galvanize parts	Mast section/trolley
Optional	Auto-landing system/ Landing door/ Lighting protection/Low temperature cut-off device

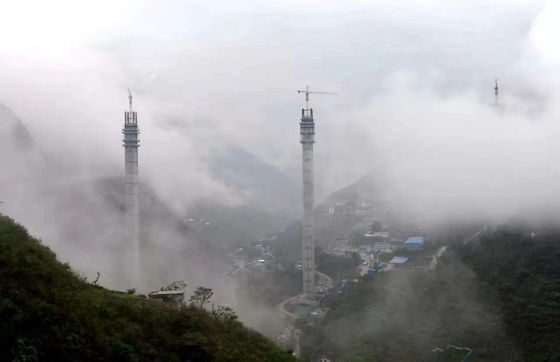

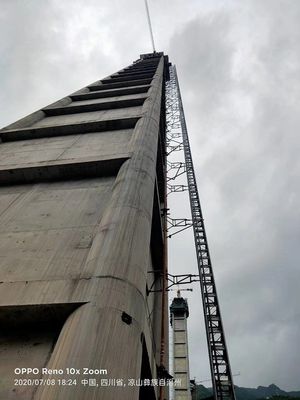

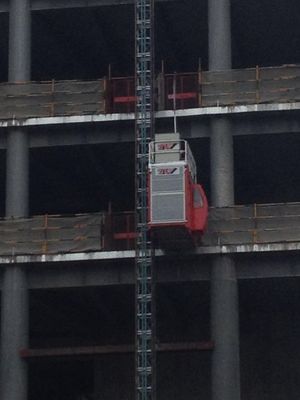

Case Show:

2000kg/Cage Hoist Building Construction 0

2000kg/Cage Hoist Building Construction 2
