|Steel Pipe:||Q345B High Strength Steel||Rated Load:||2000kg Per Cart|
|Rated Speed:||0-63m/min||Max. Installation Hight:||500m|
|Max. Passenger No.:||18||Treatment:||Hot Dip Galvanization+Painting|
|Wall Panel:||Punched Aluminium Panel|
2000kg per cart construction hoist lift,
Q345B steel construction hoist lift,
Q345B steel passenger material hoist

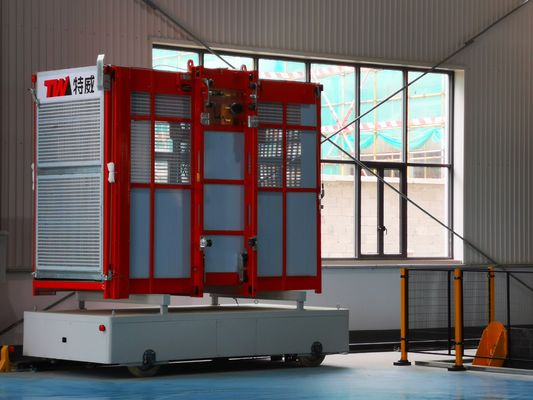

SC200/200G Middle Speed Building Hoist/Construction Elevator with Frequency Inverter for High Rise Buildings
1. Welding structure adopts a special clamping fixture. Welded cage is completely hot dip galvanized and then painted to make it more anti-rust and beautiful
2. Cage with perforated aluminum and operation cab.
3. Size 650X650x1508, thickness is 4.5/6.3/8/10, According to user needs the surface of mast can spray paint processing or hot-dip zinc treatment Rack is painted.
4. Standard configuration: single door double open the door .Other configuration: single door +flip door, single door double door side door .Configuration is optional according to the customers need
5. Cable guide device :cable basket /sliding contact line/cable trolley etc.
6. Energy saving, small start up current, adjustable speed, frequency conversion control system and smooth braking, low mechanical wear and tear.
7. SC construction lifts have perfect and reliable electrical and mechanical interlocking safety devices: door safety switch, upper and lower limit switch, limit switch, anti-top switch, safety protection hook and anti-fall safety device. Overload protector is also configured according to requirements
Compared to similar products, overload protector can work after1 hour powering off, and also has the function of memory and reading. It ensures constructions reliability and safety.
|Model||Rated Load (KG)||Running Speed (m/min)||Safety Device||Motor Power (KW)||Inverter Power (KW)|
