|Material:||Q345B Steel||Motor:||SEW TW|
|Mast Section:||Hot Galvanized||Cage:||Hot Galvanized Or Painting|
2000kg building construction lift,
2000kg material lift for construction site,
SC200/200G building construction lift
Quick Detail of Elevator Shaft Lift Building Hoist
Elevator Shaft Hoists are specially designed, with aim to install the building hoist/construction elevator into the elevator shaft. Because it is installed inside the buildings, so the hoist can avoid the affects of extreme weathers, such as wind, typhoon,etc., increasing the working efficiency of the sites as well as the operation safety.
The shaft hoist mainly consists of: cable guide, mast section, cage, driving board, lifting device, tie-in, safety device, safety control system, resistance box and an overload device.
Elevator Shaft Lift Building Hoist Specifications
|Model||SC200 ELEVATOR SHAFT HOIST|
|INSTALLATION HEIGHT (m)||Max. 500m|
(ASSEMBLED TYPE, FINAL SIZE IS SUBJECT TO ACTUAL DRAWING)
2×11 HELICAL BEVEL TYPE GEARBOOX
|MAST SECTION(mm)||650×200×1508 (HDG, SIGNLE RACK)|
|MAST QUANTITY||THICKNESS: 4.5mm 26PCS|
|TIE-IN||TYPE: V (SPECIAL) / TYPE VI|
|CABLE||WITH CABLE OR BUSBAR|
Competitive Points of Elevator Shaft Lift Building Hoist
1.Use Q345B steel; work with China three major steel mills, quality is more guaranteed;
Optimized structural design, with reasonable lightweight treatment, the overall structure force is more reasonable; ANSYS finite element model was used to calculate the structural strength, and the safety factor was more than 2 times.
2.limit switch: the limit body is firmer, the contact has obvious breaking point, the limit head is collision resistant; Not easy to deformation, not easy to fracture, more suitable for fast moving travel limit; Low maintenance cost, designed according to 200,000 movement times, low failure rate; Higher safety, eliminate the safety hidden danger caused by the upper and lower limit not to move or damage.According to 200,000 movement times, low failure rate; Higher safety, eliminate the safety hidden danger caused by the upper and lower limit not to move or damage.
1.14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
2.2 years spare-parts provided for better maintenance.
3.Professional technical staffs provide installation, commissioning and training services.

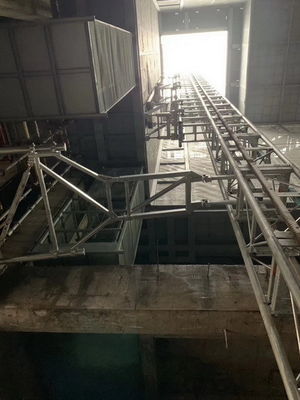

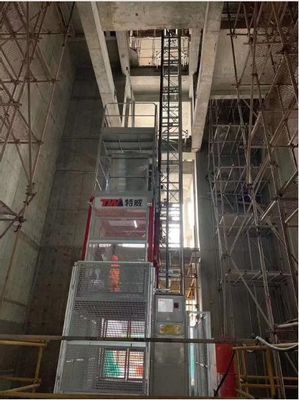

Elevator Shaft Hoist Instlled in Bankok, Thailand
