| High Light: | 1600kg construction hoist lift,46m/min construction hoist lift,1600kg inside construction elevator |
||
|---|---|---|---|
Features:
1.Elevator shaft lift is specially designed, which installed into the elevator shaft.It mainly consists of: cable guide, mast section, cage, driving board, lifting device, tie-in, safety device, safety control system, resistance box and an overload device.
2. elevator shaft hoist is with smaller cart (panel type/integrated type) and with 650*200mm mast sections,making it more compact and reducing the space requirements.
3.It has double layer roof so the electrical box & driving mechansims can be protected from the falling debrises, also the double layer provides a platform for the technicians during the installation or dismantling.
4.The hoist's cart can be designed as panel type, so the cart can be put into the elevator shaft and assembled inside, no need to widen the shaft's openning.
| Model | SC160 ELEVATOR SHAFT HOIST |
| RATED LOAD(kg) | 1600 |
| INSTALLATION HEIGHT (m) | Max. 500m |
| SPEED(m/min) | 0-46 |
|
CAGE SIZE (L×W×H/m) |
2.3×1.5×2.5 (ASSEMBLED TYPE, FINAL SIZE IS SUBJECT TO ACTUAL DRAWING) |
| MOTOR(kW) |
2×11 HELICAL BEVEL TYPE GEARBOOX |
| INVERTOR(kW) | 37 |
| MAST SECTION(mm) | 650×200×1508 (HDG, SIGNLE RACK) |
| MAST QUANTITY | THICKNESS: 4.5mm |
| TIE-IN | TYPE: V (SPECIAL) / TYPE VI |
| CABLE | WITH CABLE OR BUSBAR |
| SAFETY DEVICE | SAJ40-1.2 |

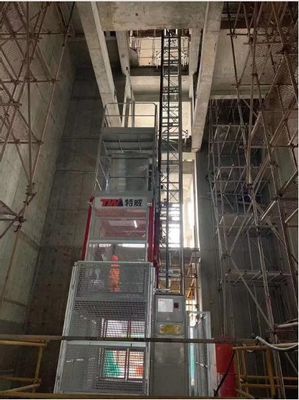

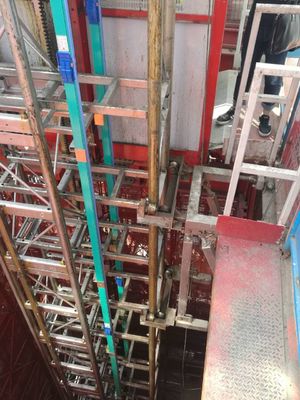

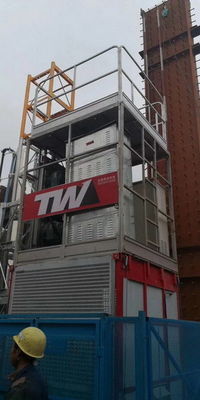

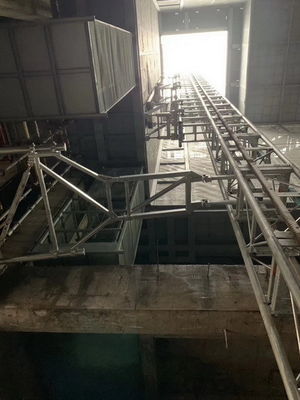

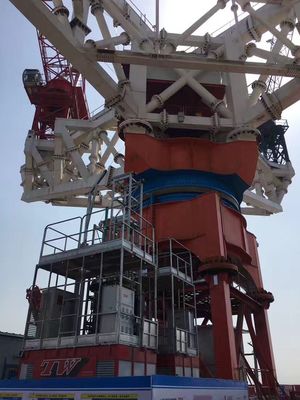

CASE SHOW:
