| Steel Pipe: | Q345B High Strength Steel | Rated Load: | 1600kg Per Cage |
|---|---|---|---|
| Rated Speed: | 0-40m/min | Max. Installation Hight: | 500m |
| Max. Passenger No.: | 18 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| High Light: | 1600kg construction site hoist,37kw construction site hoist,18 construction passenger hoist |
||

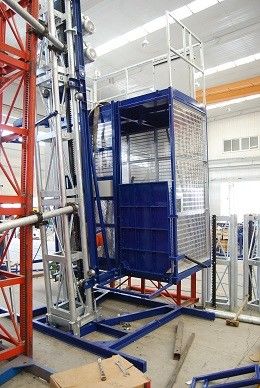

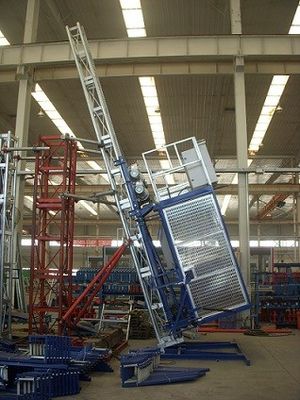

SC160 Curved hoist Building Hoist/Construction Elevator with Frequency Inverter for High Rise Buildings
Technical features:
1. Welding structure adopts a special clamping fixture. Welded cage is completely hot dip galvanized and then painted to make it more anti-rust and beautiful
2. Cage with perforated aluminum and operation cab.
3. Size 650X650x1508, thickness is 4.5/6.3/8/10, According to user needs the surface of mast can spray paint processing or hot-dip zinc treatment Rack is painted.
4. Standard configuration: single door double open the door .Other configuration: single door +flip door, single door double door side door .Configuration is optional according to the customers need
5. Cable guide device :cable basket /sliding contact line/cable trolley etc.
6. Energy saving, small start up current, adjustable speed, frequency conversion control system and smooth braking, low mechanical wear and tear.
Specifications:
| Model | SC160 |
| Loading capacity | 1600KG/cage |
| Rated speed | 0-40m/min |
| Motor & Gear Box | 2x15kw Chinese brand /SEW/NORD |
| Inverter | 37kw Chinese brand/Siemens/Schneider |
| Mast section size | 650*650*1508mm |
| Cage size | 3.2*1.5*2.1 (customized) |
| Safety device | SAJ40-1.2 |
| Hot galvanize parts | Mast section/trolley |
| Optional | Auto-landing system/ Landing door/ Lighting protection/Low temperature cut-off device |

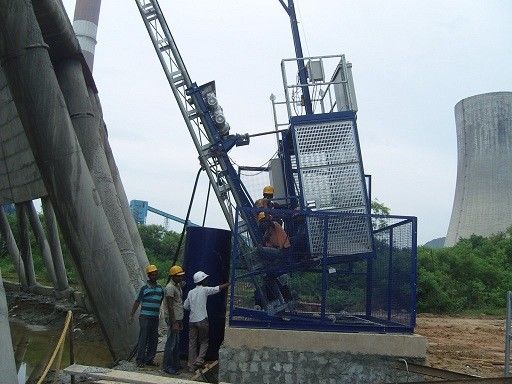

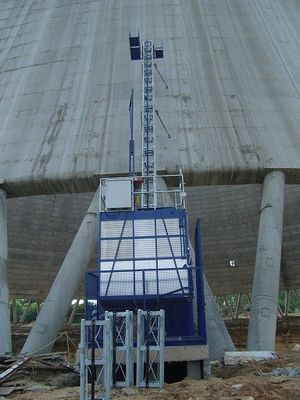

Case Show:
