| Steel Pipe: | Q345B High Strength Steel | Rated Load: | 2000kg Per Cage |
|---|---|---|---|
| Rated Speed: | 0-33m/min | Max. Installation Hight: | 500m |
| Max. Passenger No.: | 18 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| High Light: | 33m/min construction material lifting hoist,2000KGconstruction material lifting hoist,33m/min hoist lift construction |
||
SC200 inclined hoist Building Hoist/Construction Elevator with Frequency Inverter for High Rise Buildings
Technical features:
1. Widely used in chimney, cooling tower, bridge and other construction projects;
2. Lift track with special design, which can be used in curve, oblique layout;
3. The floating leveling mechanism is adopted to ensure that the lifting cage always stays level when the construction lift moves along the curve/diagonal line;
4. Cage size, lifting speed and tilt Angle can also be customized according to customer requirements
5. The safety device is very complete and reliable, the anti-drop safety device with national patent technology makes this product more safe.
6. Steel structure design with scientific and rigorous calculation, meet the requirements of reasonable structure, reliable strength, light weight.
Specifications:
| Model | SC200 |
| Loading capacity | 2000KG/cage |
| Rated speed | 0-33m/min |
| Motor & Gear Box | 2x11kw Chinese brand /SEW/NORD |
| Inverter | 37kw Chinese brand/Siemens/Schneider |
| Mast section size | 650*650*1508mm |
| Cage size | 3.2*1.5*2.1 (customized) |
| Safety device | SAJ40-1.2 |
| Hot galvanize parts | Mast section/trolley |
| Optional | Auto-landing system/ Landing door/ Lighting protection/Low temperature cut-off device |

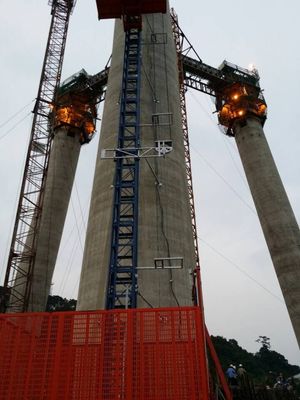

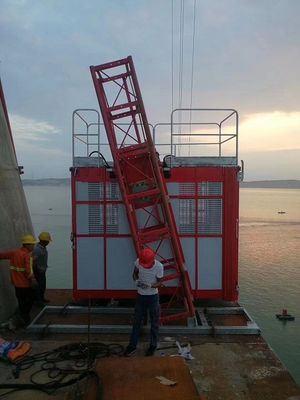

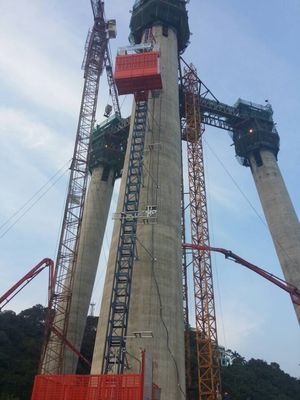

Case Show:
