Product Details:
Payment & Shipping Terms:
|
| Steel Pipe: | Q355B High Strength Steel | Rated Load: | 400kg Per Cage |
|---|---|---|---|
| Rated Speed: | 0-40m/min | Max. Installation Hight: | 250m |
| Max. Passenger No.: | 18 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| High Light: | 250m building site hoist,15kw building site hoist,40m/min building material hoist |
||
SC40 Mini hoist Building Hoist/Construction Elevator with Frequency Inverter for High Rise Buildings
Technical features:
1. Widely used in chimney, cooling tower, bridge and other construction projects;
2. Lift track with special design, which can be used in curve, oblique layout;
3.Cage size, lifting speed and tilt Angle can also be customized according to customer requirements
4. The safety device is very complete and reliable, the anti-drop safety device with national patent technology makes this product more safe.
5. Steel structure design with scientific and rigorous calculation, meet the requirements of reasonable structure, reliable strength, light weight.
Specifications:
| Model | SC40 |
| Loading capacity | 400KG/cage |
| Rated speed | 0-40m/min |
| Motor & Gear Box | 2x7.5kw Chinese brand |
| Inverter | 15kw Chinese brand/Siemens/Schneider |
| Mast section size | 650*200*1508mm |
| Cage size | 1.1*0.9*2.1 (customized) |
| Safety device | SAJ30-1.2 |
| Hot galvanize parts | Mast section/trolley |
| Optional |
1. Inverter and energy feedback integrated machine. 2. Automatic landing system 3. Bevel high efficient motors and reducers 4. Stainless steel cage |

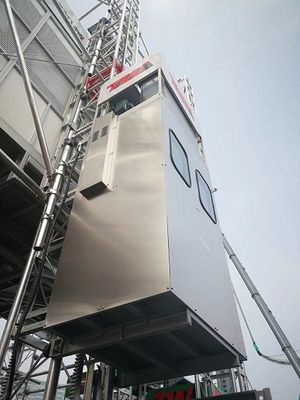

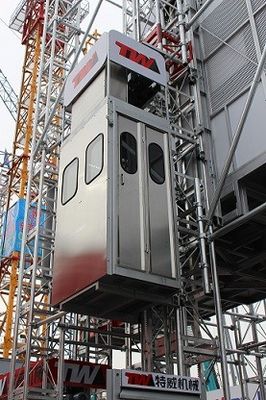

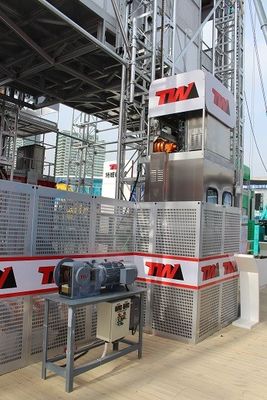

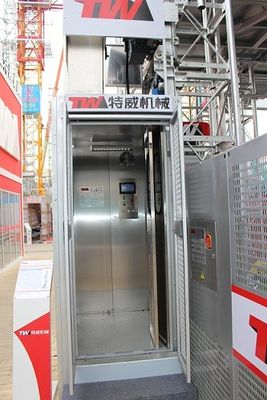

Case Show:
