| Steel Pipe: | Q345B High Strength Steel | Rated Load: | 4000kg |
|---|---|---|---|
| Rated Speed: | 0-30m/min | Max. Installation Hight: | 325m |
| Max. Passenger No.: | 18 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| High Light: | 325m passenger material hoist,4000KG passenger material hoist,4000KG temporary lift for construction |
||
SCE400G Building Hoist/Construction Elevator with Frequency Inverter for High Rise Buildings
SCE400G Passenger Material Hoist Features
1. Welding structure adopts a special clamping fixture. Welded cage is completely hot dip galvanized and then painted to make it more anti-rust and beautiful
2. Cage with perforated aluminum and operation cab.
3. Size 650X650x1508, thickness is 4.5/6.3/8/10, According to user needs the surface of mast can spray paint processing or hot-dip zinc treatment Rack is painted.
4. Standard configuration: single door double open the door .Other configuration: single door +flip door, single door double door side door .Configuration is optional according to the customers need.
SCE400G Passenger Material Hoist Specifications
| Model | SCE400G |
| Loading capacity | 4000KG |
| Rated speed | 0-30m/min |
| Motor & Gear Box | 2x3x15kw |
| Inverter | 2x45kw |
| Mast section size | 650*200*1508mm |
| Cage size | 3.0×5.0×3.0m |
| Safety device | SAJ60-2.0 |
| Hot galvanize parts | Mast section/trolley |
| Optional |
1. Double mast sections with big cage and load capacity 2. Automatic landing system 3. Bevel high efficient motors and reducers |
Our Services
1.2 years spare-parts provided for better maintenance.
2.Professional technical staffs provide installation, commissioning and training services.
3.Delivery with English user manual, parts manual, product certification and other relevant certificates.
4.Technical advisory for any time and Engineers available to service machinery overseas.
FAQ
Q1. How can I get the price?
A: Please kindly offer your detail requirements data first. Such as load capacity, installation height, working speed, single or double cages. Usually after get above data, we can make quotation accordingly.
Q2. What about the lead time?
A: 30-50 days for production arrangement. Also we have some common models for stocks.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1 unit is available.

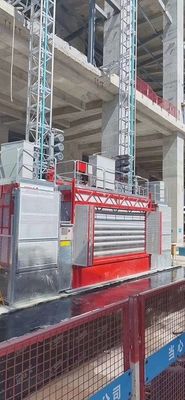

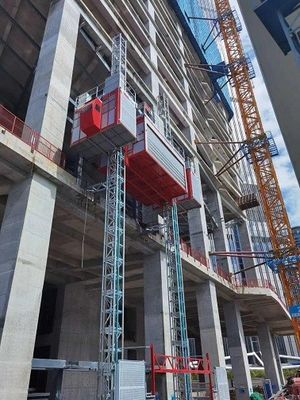

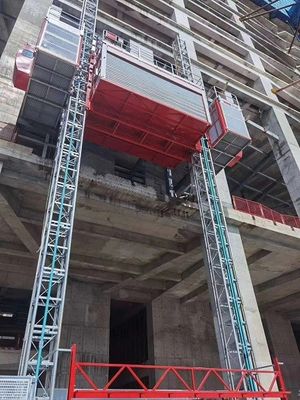

Case Show
