Product Details:
Payment & Shipping Terms:
|
| Steel Pipe: | Q345B High Strength Steel | Rated Load: | 2000kg |
|---|---|---|---|
| Rated Speed: | 30m/min | Max. Installation Hight: | 250m |
| Max. Passenger No.: | 30 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| High Light: | 37kw passenger material hoist,bevel heicial gearbox building construction hoist,37kw building construction hoist |
||
SC hoist is vertical transport machinery for building materials and personnel, driving with pinion and rack, applies to engineering of high rise. SC hoist is equipped with reliable electrical and mechanical safety device. It is an efficient and safety vertical transporting equipment.
The hoist can be installed and disassembled very easily and can also be heightened with the constant increase of building, According to customers' requirements, the cage can be single or double. The single cage building hoist can become a double cage building hoist by adding one cage and other components. The payload can be doubled if equipped with counterweight to meet different customers' requirements. The product has following features:
1. High Efficiency Buidling Hoist for People & Materials for high rise buildings
2. Fully hot dip galvanized cage frame & spare parts
3. Full Set of Safety Devices
4. Cost saving
5. Free easy wearing parts Plus One Year Warranty
Specifications:
| Model | SC200 |
| Loading capacity0 | 2000KG |
| Rated speed | 30m/min fixed speed |
| Motor & Gear Box | 2x11kw Bevel Heicial Gearbox |
| Inverter | 37kw |
| Mast section size | 650*650*1508mm ( paiting / hot galvanized) |
| Cage size | 3.2x1.5x2.1m |
| Safety device | SAJ40-1.2 |
| Hot galvanize parts | Mast section/trolley |
| Counter weight | no |

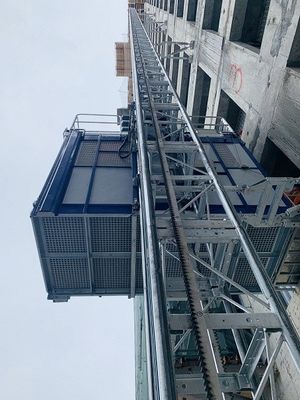

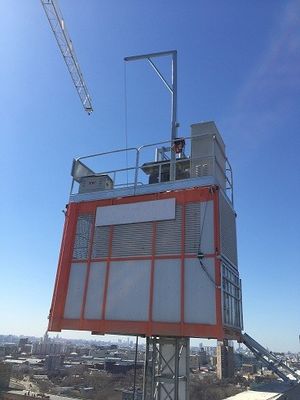

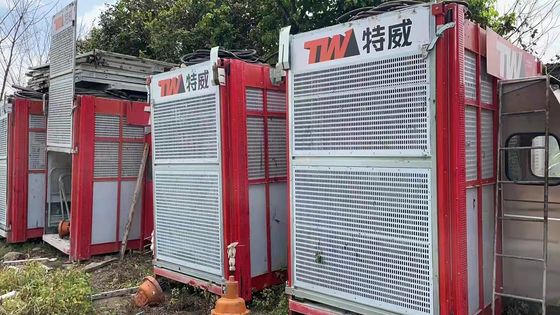

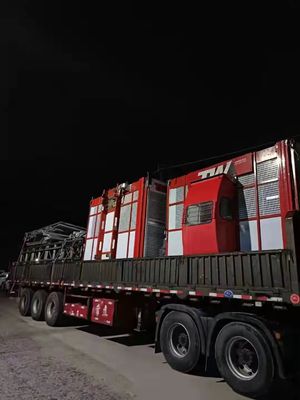

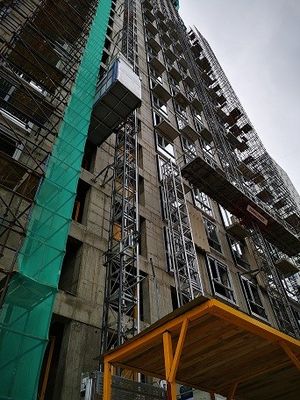

Case Show:
