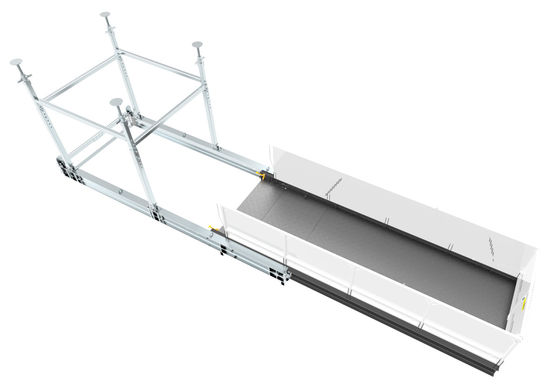

Galvanized Extendable Loading Deck , Cantilever Loading Platform 3200mm

MLP2800-H 5ton Capacity Loading Material Platform for Multi-Story Construction Sites

The MLP LOAD DECK is a new product developed according to the market application trend in these years.
Its function is to transport the materials, equipment and tools needed for construction to the construction floor
or the garbage generated by the construction. A transfer station that transports waste and tools to the ground.

MLP series retractable load deck is a unique product to improve materials handling efficiency and safety for the
multi storey and high rise construction sectors. It offers a cost effective method of delivering goods to different
levels of a building when used with a crane. When goods are required to be delivered toa particular floor level,
all the deck installed above that level can be retracted, enabling the crane to operate unobstructed.

Crane Loading Deck Features

1. Easy pull/push system

2. Max. outboard length:5.3m

3. Max. load capacity:5ton

4. Platform width: from 2.2m to 4.2m

5. With adjustable props for different floor heights

6. Compact design makes the transportation & installation much easier

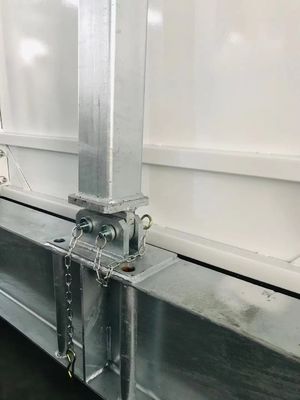

7. With easy locking system

8. All pins are with chains
