5000kg Building Loading Platform Hot Dip Galvanization MLP4200

5000kg Building Loading Platform Hot Dip Galvanization MLP4200
5000kg Building Loading Platform Hot Dip Galvanization MLP4200 5000kg Building Loading Platform Hot Dip Galvanization MLP4200 5000kg Building Loading Platform Hot Dip Galvanization MLP4200 5000kg Building Loading Platform Hot Dip Galvanization MLP4200 5000kg Building Loading Platform Hot Dip Galvanization MLP4200

Large Image :  5000kg Building Loading Platform Hot Dip Galvanization MLP4200

Product Details:
Place of Origin: China
Brand Name: TECHWAY
Certification: Mill Certificate & Full-load Certificate
Model Number: MLP4200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD10,900.00-12,900.00 per unit
Packaging Details: 8 Units in 1x40' FR, Nude in Container
Delivery Time: 40 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 100 Units per month
Detailed Product Description
Max. Load: 5000kg Platform Width: 3.2m
Max. Outboard Length: 5.3m Treatment: Main Frame & Props Are With Hot Dip Galvanization
Painting: Sand Blasting & Epoxy Paint
High Light:

5000kg building loading platform

,

hot dip galvanization building loading platform

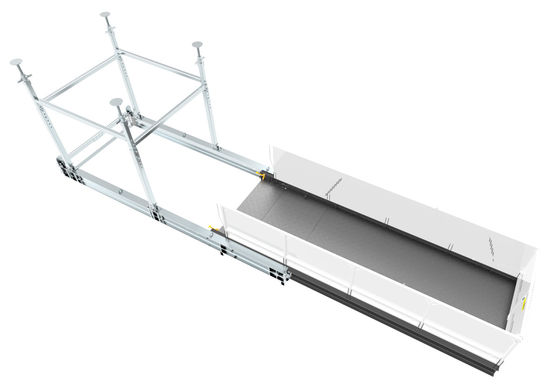

MLP4200 5ton Capacity Retractable Loading Bay for Multi-Story Construction Sites



The MLP LOAD DECK is a new product developed according to the market application trend in these years.
Its function is to transport the materials, equipment and tools needed for construction to the construction floor
or the garbage generated by the construction. A transfer station that transports waste and tools to the ground.

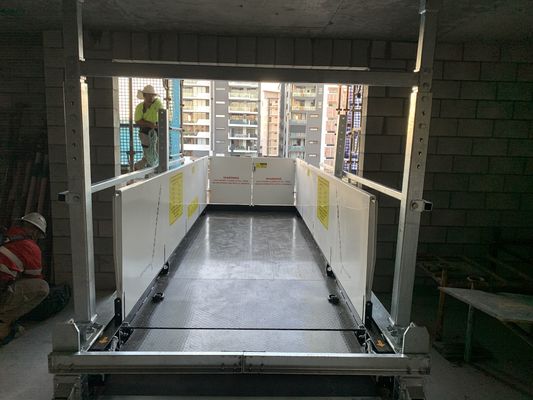

MLP series retractable load deck is a unique product to improve materials handling efficiency and safety for the
multi storey and high rise construction sectors. It offers a cost effective method of delivering goods to different
levels of a building when used with a crane. When goods are required to be delivered toa particular floor level,
all the deck installed above that level can be retracted, enabling the crane to operate unobstructed.





The standard props allow a minimum height of 2400mm and a maximum height of 3300mm.Please consult with your dealer for other special requirements. We can design special props according to your requirements. Furthermore, MLP 2200-L, MLP 2200-H, MLP 2600,MLP 3200, MLP 4200 can also be fixed to the concrete slab with bolts through slab if the customer needs.



Crane Loading Deck Features

1. Easy pull/push system

2. Max. outboard length:5.3m

3. Max. load capacity:5ton

4. Platform width: from 2.2m to 4.2m

5. With adjustable props for different floor heights

6. Compact design makes the transportation & installation much easier

7. With easy locking system

8. All pins are with chains to keep them from falling

5000kg Building Loading Platform Hot Dip Galvanization MLP4200 0



5000kg Building Loading Platform Hot Dip Galvanization MLP4200 1



5000kg Building Loading Platform Hot Dip Galvanization MLP4200 2
