Product Details:
Payment & Shipping Terms:
|
| Cross Section (mm²): | 3x16+2x6 | Outer Sheath Thickness (mm): | 3.7 |
|---|---|---|---|
| Outer Diameter (mm): | 23.5-29.7 | ||
| High Light: | water resistant crane electrical cable,3.7mm copper crane electrical cable,water resistant industrial electrical cable |
||
Building Hoist Parts Electrical Cable with Copper and Water Resistance Rubber for Cable Trolley Usage

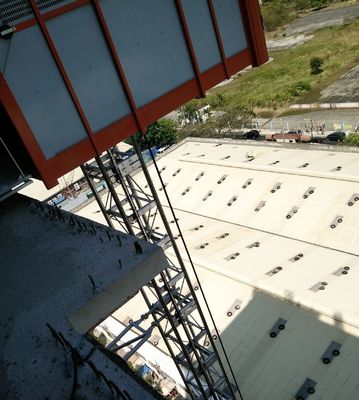

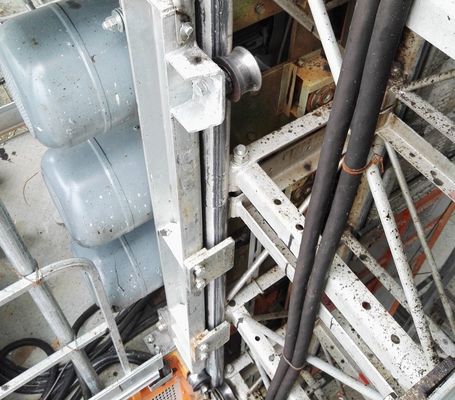

Building Hoist Power Cable
The power cable is specially designed for building hoist and tower crane basing on the extra heavy duty carried by those machines. It can be used at rated average voltage 450/750V.
By changing the combination of rubber formula, the resistance to impact and reiction is greatly increased while the cable is also capable of undertaking greater mechanical force. Comparing to general flexible rubber cable, we are more suitable for equipment used in contruction site.
| Cores x Nominal Cross Section (mm²) |
Outer Sheath Thickness (mm) |
Averages Outer Diameter (mm) | |
| Minimum | Maximum | ||
| 3x10+1x6 | 3.4 | 21.0 | 25.5 |
| 3x16+1x6 | 3.6 | 22.4 | 28.4 |
| 3x16+1x10 | 3.6 | 23.5 | 29.5 |
| 3x25+1x10 | 4.1 | 27.3 | 34.5 |
| 3x25+1x16 | 4.1 | 28.0 | 35.2 |
| 3x10+2x16 | 3.5 | 21.4 | 27.1 |
| 3x16+2x16 | 3.7 | 23.5 | 29.7 |
| 3x16+2x10 | 3.7 | 25.5 | 31.7 |
| 3x25+2x10 | 4.2 | 28.6 | 36.1 |
| 3x25+2x16 | 4.2 | 29.9 | 37.4 |
Other sizes can be customized, such as cable with extra control signal wires, cable with steel wire rope in side, etc.
