| Cross Section (mm²): | 3x35+1x10 | Outer Diameter (mm): | 33.4mm |
|---|---|---|---|
| Weight (kg/m): | 2.1 | ||
| High Light: | 33.4mm rubber coated electrical wire,CCC crane electrical cable,flex crane electrical cable |
||

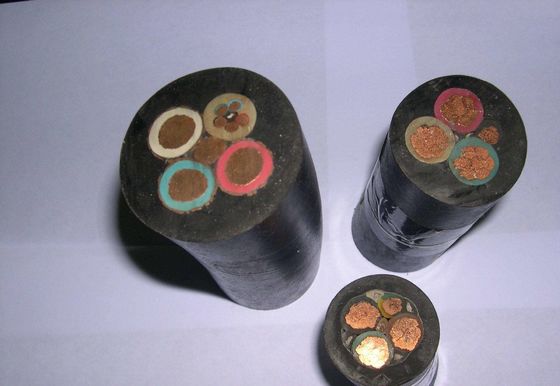

Tower Crane Parts Electrical Cable with Copper and High Tensile Strength Rubber for Crane Usage

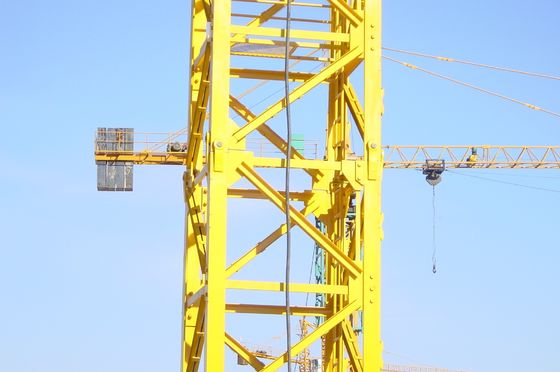

Construction Tower Crane(crane machine)Cable
The power cable is specially designed for building hoist and tower crane basing on the extra heavy duty carried by those machines. It can be used at rated average voltage 450/750V.
By changing the combination of rubber formula, the resistance to impact and reiction is greatly increased while the cable is also capable of undertaking greater mechanical force. Comparing to general flexible rubber cable, we are more suitable for equipment used in contruction site.
Product advantages: Good electrical performance, easy laying and installation, good low temperature resistance, long-term use of cable does not crack.
Products application: For the following rated voltage 450/750V and tower cranes (crane),or other heavy electrical equipment, mobile power connections, mainly for static laying tower crane(crane).
| Model | Size(mm²) | Diameter(mm) | Weight(kg/km) | Current @25℃ (A) |
| YC 450/750V |
3×10 | 22.0 | 848 | 63 |
| 3×16 | 25.2 | 1112 | 84 | |
| 3×25 | 29.8 | 1608 | 115 | |
| 3×35 | 33.0 | 2006 | 142 | |
| 3×10+1×6 | 22.6 | 865 | 63 | |
| 3×16+1×6 | 25.7 | 1164 | 84 | |
| 3×25+1×10 | 31.2 | 1739 | 115 | |
| 3×35+1×10 | 33.4 | 2096 | 142 | |
| 3×10+2×6 | 23.8 | 976 | 63 | |
| 3×16+2×6 | 26.8 | 1271 | 84 | |
| 3×25+2×10 | 32.6 | 1932 | 115 | |
| 3×35+2×10 | 34.8 | 2294 | 142 |
Other sizes can be customized, such as cable with extra control signal wires, cable with steel wire rope in side, etc.
