Product Details:
Payment & Shipping Terms:
|
| Cross Section (mm²): | 3x16+2x6 | Outer Sheath Thickness (mm): | 3.5 |
|---|---|---|---|
| Outer Diameter (mm): | 24.5-29 | ||
| High Light: | wearproof round power cable,wearproof tough rubber sheathed cable,3.5mm tough rubber sheathed cable |
||

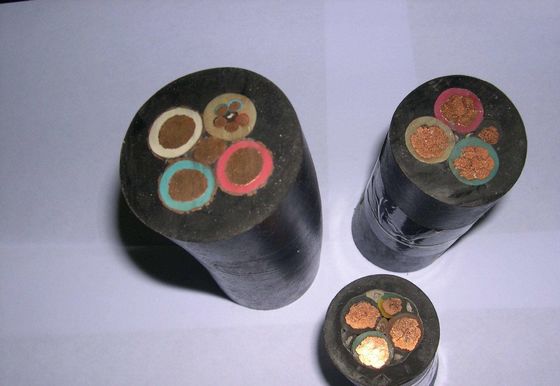

Round Shape Power Cable with Copper Conductor and Rubber Sheath for Building Hoist Cable Trolley or Cable Basket
Building Hoist Power Cable

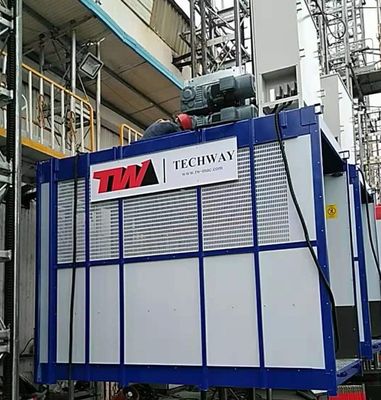

The power cable is specially designed for building hoist and tower crane basing on the extra heavy duty carried by those machines. It can be used at rated average voltage 450/750V.
By changing the combination of rubber formula, the resistance to impact and reiction is greatly increased while the cable is also capable of undertaking greater mechanical force. Comparing to general flexible rubber cable, we are more suitable for equipment used in contruction site.
Product advantages: It has the advantages of excellent tensile property, excellent torsion resistance, no package, continuous core, wear resistance, etc.
Products application: For rated voltage 450/750V and below the lift (elevator construction) or other heavy electrical equipment, mobile power supply connection for the dynamic laying the pulley lift, able to withstand greater force and anti-torque.
| Cores x Nominal Cross Section (mm²) |
Outer Sheath Thickness (mm) |
Averages Outer Diameter (mm) | |
| Minimum | Maximum | ||
| 3x10+1x6 | 3.4 | 21.0 | 25.5 |
| 3x16+1x6 | 3.6 | 22.4 | 28.4 |
| 3x16+1x10 | 3.6 | 23.5 | 29.5 |
| 3x25+1x10 | 4.1 | 27.3 | 34.5 |
| 3x25+1x16 | 4.1 | 28.0 | 35.2 |
| 3x10+2x16 | 3.5 | 21.4 | 27.1 |
| 3x16+2x16 | 3.7 | 23.5 | 29.7 |
| 3x16+2x10 | 3.7 | 25.5 | 31.7 |
| 3x25+2x10 | 4.2 | 28.6 | 36.1 |
| 3x25+2x16 | 4.2 | 29.9 | 37.4 |
