| Steel Pipe: | Q345B High Strength Steel | Rated Load: | 5000kg |
|---|---|---|---|
| Rated Speed: | 0-30m/min | Max. Installation Hight: | 250m |
| Max. Passenger No.: | 30 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| High Light: | 5000kg building site hoist,painted building site hoist,5000kg construction material hoist |
||

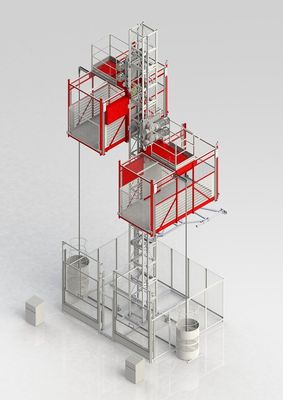

5000kg Twin Mast Building Hoist for Construction Materials Transportation in High Rise Buildings
Technical features:
1. We have developed double pillarl Heavy-duty Building hoist to client's requirements. This Building hoist requires small space and can transport large and heavy goods; it is useful in department stores, hospitals and parking lots.
2. The cage and the door material can be aluminum molded board, punched-plate, figured aluminum board or other type according to your requirements.
3. The mast and the tie-in surface can adopt paint-spray, or hot galvanizing processing. Both domestic and imported driving systems are available.
4. SC construction lifts have perfect and reliable electrical and mechanical interlocking safety devices: door safety switch, upper and lower limit switch, limit switch, anti-top switch, safety protection hook and anti-fall safety device. Overload protector is also configured according to requirements
Specifications:
| Model | SCE500 |
| Loading capacity | 5000KG |
| Rated speed | 0-30m/min |
| Motor & Gear Box | 2x3x11kw Bevel Heicial Gearbox |
| Inverter | 2x37kw Schneider |
| Mast section size | 650*650*1508mm |
| Cage size | 5*6*2.3m (can be customized) |
| Safety device | SAJ70-1.4 (with braking system) |
| Hot galvanize parts | Mast section/trolley |
| Counterweight | Yes |

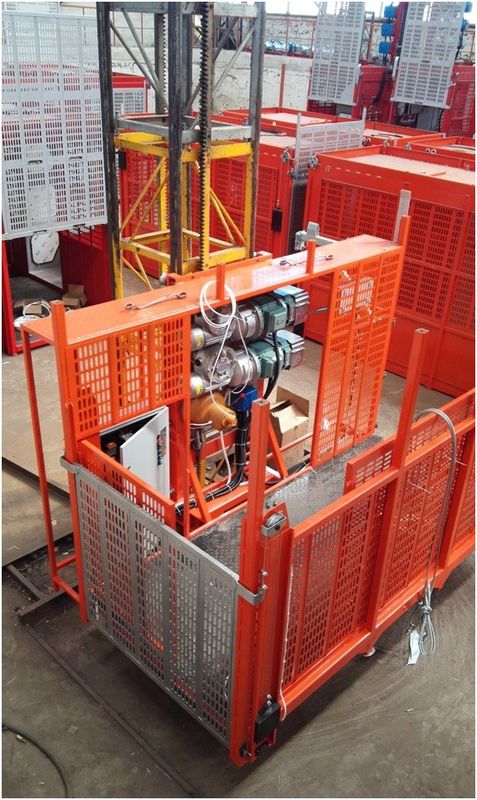

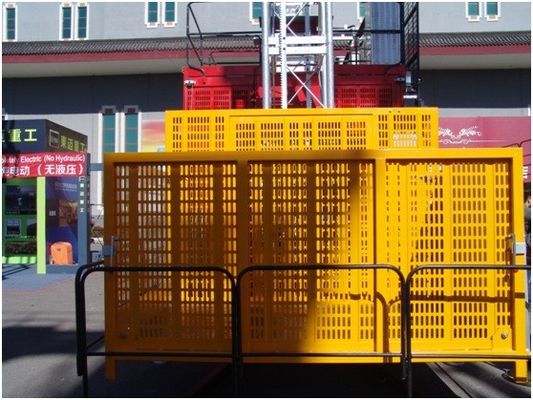

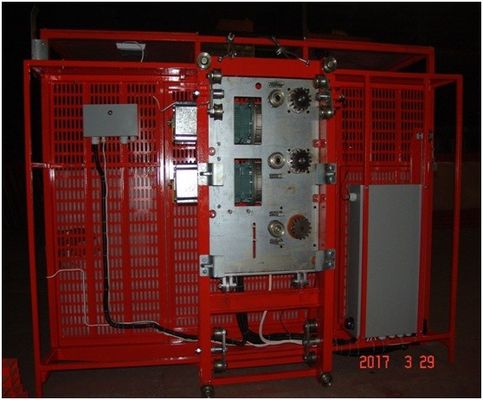

Case Show:
