| Steel Pipe: | Q345B High Strength Steel | Rated Load: | 4000kg |
|---|---|---|---|
| Rated Speed: | 0-30m/min | Max. Installation Hight: | 325m |
| Max. Passenger No.: | 18 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| High Light: | SCE400G construction personnel hoist,hot galvanized construction personnel hoist,SCE400G rack and pinion hoist |
||
Hot Galvanized SCE400G Construction Personnel Building Hoist Lift rack and pinion type for High Rise Buildings
SCE400G Construction Personnel Building Hoist Features:
1. Welding structure adopts a special clamping fixture. Welded cage is completely hot dip galvanized and then painted to make it more anti-rust and beautiful
2. The cage and the door material can be aluminum molded board, punched-plate, figured aluminum board or other type according to your requirements.
3. Size 650X650x1508, thickness is 4.5/6.3/8/10, According to user needs the surface of mast can spray paint processing or hot-dip zinc treatment Rack is painted.
4. Standard configuration: single door double open the door .Other configuration: single door +flip door, single door double door side door .Configuration is optional according to the customers need
5. Cable guide device :cable basket /sliding contact line/cable trolley etc.
6. Energy saving, small start up current, adjustable speed, frequency conversion control system and smooth braking, low mechanical wear and tear.
SCE400G Construction Personnel Building Hoist Specifications:
| Model | SCE40G |
| Loading capacity | 4000KG |
| Rated speed | 0-30m/min |
| Motor & Gear Box | 2x3x15kw |
| Inverter | 2x45kw |
| Mast section size | 650*200*1508mm |
| Cage size | 3.0×5.0×3.0m |
| Safety device | SAJ60-2.0 |
| Hot galvanize parts | Mast section/trolley |
| Optional |
1. Double mast sections with big cage and load capacity 2. Automatic landing system 3. Bevel high efficient motors and reducers |
Competitive points for SCE400G Construction Personnel Building Hoist
1.Use Q345B steel; work with China three major steel mills, quality is more guaranteed;
Optimized structural design, with reasonable lightweight treatment, the overall structure force is
more reasonable; ANSYS finite element model was used to calculate the structural strength, and the safety factor was more than 2 times.
2.PLC control: the circuit is simpler, realized monitoring, the hardware and circuit changes small before and after the product control upgrade, easy for maintenance ;The electronic control design is more reasonable, the main control parts adopts Schneider electric matching, to ensure
safe and effective operation.
FAQ
Q1. How to proceed an order ?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the specifications and places deposit for formal order. Fourthly We arrange the production.
Q2. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 12 months warranty to our whole unit products.

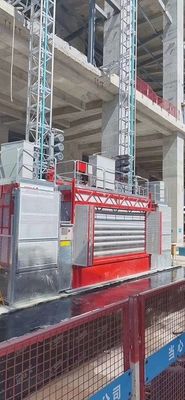

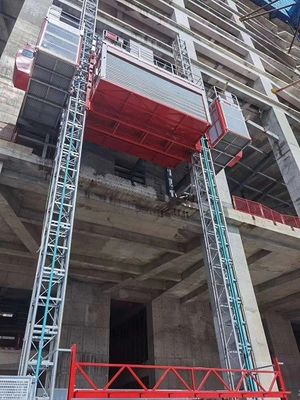

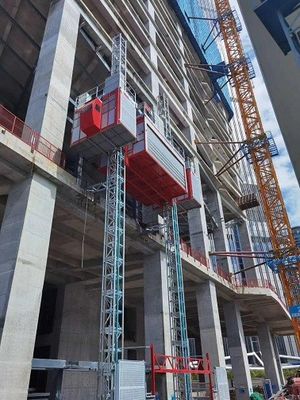

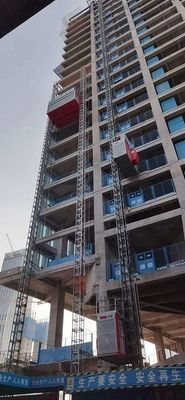

SCE400G Construction Personnel Building Hoist Case Show:
