| Steel Pipe: | Q355B High Strength Steel | Rated Load: | 400kg Per Cage |
|---|---|---|---|
| Rated Speed: | 0-40m/min | Max. Installation Hight: | 250m |
| Max. Passenger No.: | 18 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| High Light: | Q355B steel building site hoist,15kw building site hoist,15kw building lifts elevators |
||

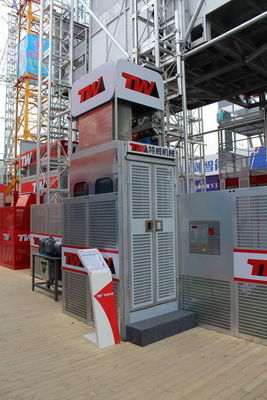

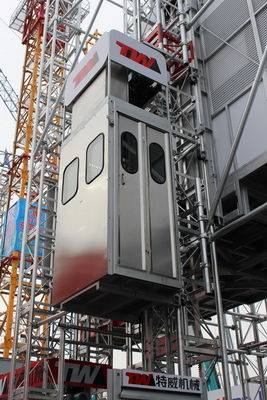

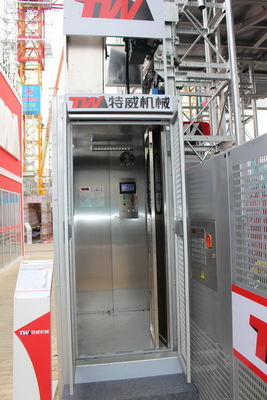

400kg load Mini hoist Building Hoist/ personel hoist / stainless cage with inverter for tower/bridge/high rise building
Technical features:
1. Cage with perforated aluminum and operation cab. Cage size, lifting speed and tilt Angle can also be customized according to customer requirements
2. Mast section size 650X650x1508, thickness is 4.5/6.3/8/10, According to user needs the surface of mast can spray paint processing or hot-dip zinc treatment Rack is painted.
3. Standard configuration: single door double open the door .Other configuration: single door +flip door, single door double door side door .Configuration is optional according to the customers need
4. Cable guide device :cable basket /sliding contact line/cable trolley etc.
5. The safety device is very complete and reliable, the anti-drop safety device with national patent technology makes this product more safe.
6. Steel structure design with scientific and rigorous calculation, meet the requirements of reasonable structure, reliable strength, light weight.
Specifications:
| Model | SC40 |
| Loading capacity | 400KG/cage |
| Rated speed | 0-40m/min |
| Motor & Gear Box | 2x7.5kw Chinese brand |
| Inverter | 15kw Chinese brand/Siemens/Schneider |
| Mast section size | 650*200*1508mm |
| Cage size | 1.1*0.9*2.1 (customized) |
| Safety device | SAJ30-1.2 |
| Hot galvanize parts | Mast section/trolley |
| Optional |
1.Inverter and energy feedback integrated machine. 2.Automatic landing system 3.Bevel high efficient motors and reducers 4.Stainless steel cage |
