Product Details:
Payment & Shipping Terms:
|
| Steel Pipe: | Q355B High Strength Steel | Rated Load: | 400kg Per Cage |
|---|---|---|---|
| Rated Speed: | 0-40m/min | Max. Installation Hight: | 250m |
| Max. Passenger No.: | 18 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| High Light: | anti corrosion construction hoist elevator,40m/min construction hoist elevator,40m/min material hoist construction |
||
Stainless mini signle hoist /Building Hoist/Construction Elevator with hot dip galvanized and Frequency Inverter
Technical features:
SC40 industrial construction lifts
1. for tower cranes, cooling towers, chimneys, ports and other buildings.
2. use double motors to ensure safety.
3. no embroidered steel cage structure, anti-corrosion and durable beauty.
Specifications:
| Model | SC40 |
| Loading capacity | 400KG/cage |
| Rated speed | 0-40m/min |
| Motor & Gear Box | 2x7.5kw Chinese brand |
| Inverter | 15kw Chinese brand/Siemens/Schneider |
| Mast section size | 650*200*1508mm |
| Cage size | 1.1*0.9*2.1 (customized) |
| Safety device | SAJ30-1.2 |
| Hot galvanize parts | Mast section/trolley |
| Optional |
1.Inverter and energy feedback integrated machine. 2.Automatic landing system 3.Bevel high efficient motors and reducers 4.Stainless steel cage |

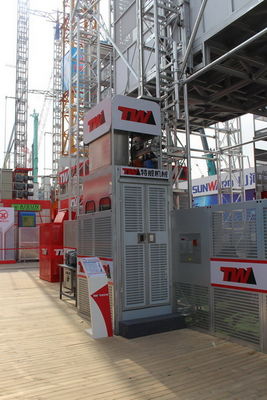

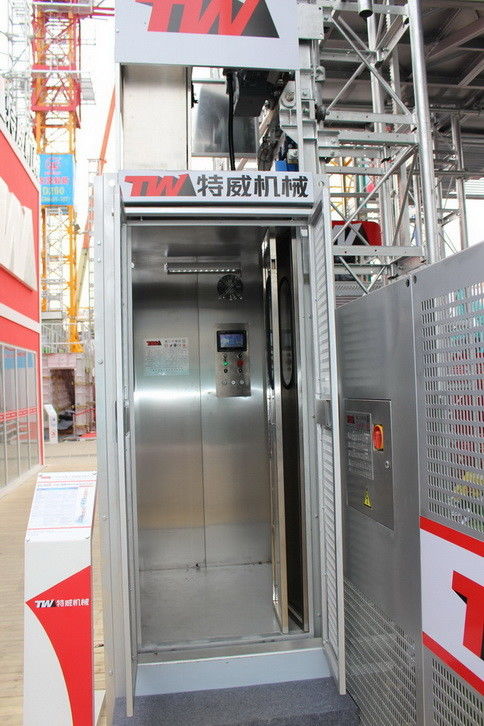

Case Show:
