Inclined Mast 500m Building Site Hoist For Chimneys Construction

Inclined Mast 500m Building Site Hoist For Chimneys Construction
Inclined Mast 500m Building Site Hoist For Chimneys Construction
video play

Large Image :  Inclined Mast 500m Building Site Hoist For Chimneys Construction

Product Details:
Place of Origin: China
Brand Name: TW-TECHWAY
Certification: CE
Model Number: SC200
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: 18,800USD~80,000 USD per Unit
Packaging Details: Nude in Container, 40'HQ + 20'GP
Delivery Time: 40 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 500 Units Per Month
Detailed Product Description
Steel Pipe: Q345B High Strength Steel Rated Load: 2000kg Per Cage
Rated Speed: 0-33m/min Max. Installation Hight: 500m
Max. Passenger No.: 18 Treatment: Hot Dip Galvanization+Painting
Wall Panel: Punched Aluminium Panel
High Light:

inclined mast building site hoist

,

500m building site hoist

,

500m hoist in construction site

Inclined building hoist /Chimney hoist with inclined mast /Goods and material lift used for tower, bridge and chimney



Technical features:

1. The inclined building hoists are widely used in construction of chimneys, water towers and bridges.

2. The track of this building hoist is incurved shape and parallel to the exterior of the building. The floating leveling mechanism ensures the level of cage while the hoist is moving along the curved line.

3. The inclined building hoist is applied in construction of buildings with an inclined exterior.

4. The recommended cage size can be designed as following : 2.0x 1.0x2.5 m, 2.5x 1.0x2.5, 2.5x1.3x2.5m, 3.0x1.3x2.5m, 3.2x1.5x2.5m etc. We can also manufacture cages of other size according to the user requirement.

5. The cage and the door material can be aluminum molded board, punched-plate, figured aluminum board or other type according to your requirements.

6. The mast and the tie-in surface can adopt paint-spray, or hot galvanizing processing.

Both domestic and imported driving systems are available.





Specifications:



Model SC200
Loading capacity 2000KG/cage
Rated speed 0-33m/min
Motor & Gear Box 2x11kw  Chinese brand /SEW/NORD
Inverter 37kw      Chinese brand/Siemens/Schneider
Mast section size 650*650*1508mm
Cage size 3.2*1.5*2.1 (customized)
Safety device SAJ40-1.2
Hot galvanize parts Mast section/trolley
Optional Auto-landing system/ Landing door/ Lighting protection/Low temperature cut-off device

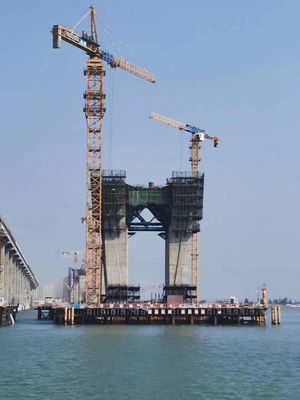

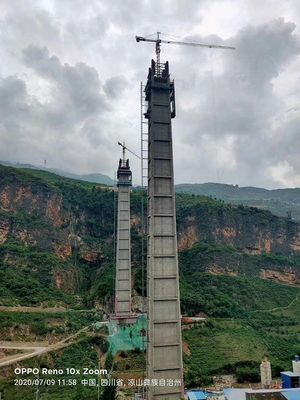

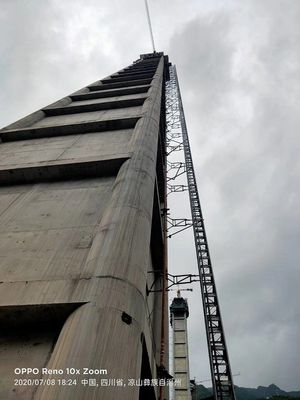

Case Show:

Inclined Mast 500m Building Site Hoist For Chimneys Construction 0Inclined Mast 500m Building Site Hoist For Chimneys Construction 1

Inclined Mast 500m Building Site Hoist For Chimneys Construction 2Inclined Mast 500m Building Site Hoist For Chimneys Construction 3Inclined Mast 500m Building Site Hoist For Chimneys Construction 4
