Single Cage 11kw Exterior Construction Elevator 150m Construction Site Hoist

Single Cage 11kw Exterior Construction Elevator 150m Construction Site Hoist
Single Cage 11kw Exterior Construction Elevator 150m Construction Site Hoist Single Cage 11kw Exterior Construction Elevator 150m Construction Site Hoist Single Cage 11kw Exterior Construction Elevator 150m Construction Site Hoist

Large Image :  Single Cage 11kw Exterior Construction Elevator 150m Construction Site Hoist

Product Details:
Place of Origin: China
Brand Name: TW-TECHWAY
Certification: CE
Model Number: SC160
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: 18,800USD~80,000 USD per Unit
Packaging Details: Nude in Container, 40'HQ
Delivery Time: 60 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 500 Units Per Month
Detailed Product Description
Steel Pipe: Q345B High Strength Steel Rated Load: 1600kg Per Cage
Rated Speed: 30m/min Max. Installation Hight: 150m
Max. Passenger No.: 30 Treatment: Hot Dip Galvanization+Painting
Wall Panel: Punched Aluminium Panel
High Light:

150m exterior construction elevator

,

11kw exterior construction elevator

,

150m construction site hoist

SC160/1600kg load single cage Building Hoist/Construction Elevator with hot galvanized mast section ,cage , and tie-in



SC hoist is vertical transport machinery for building materials and personnel, driving with pinion and rack, applies to engineering of high rise. SC hoist is equipped with reliable electrical and mechanical safety device. It is an efficient and safety vertical transporting equipment.



The hoist can be installed and disassembled very easily and can also be heightened with the constant increase of building, According to customers' requirements, the cage can be single or double. The single cage building hoist can become a double cage building hoist by adding one cage and other components. The payload can be doubled if equipped with counterweight to meet different customers' requirements. The product has following features:

1. Do not require operators in the cage;

2. The structure is galvanized, and hard-wearing

3. Automatic stop is optional, which is convenient for transportation;

4. Space in the cage enlarged structure optimized. The total weight reduces, Motor power consumption reduces.







Specifications:



Model SC160
Loading capacity 1600KG
Rated speed 30m/min
Motor & Gear Box 2x11kw
Mast section size 650*650*1508mm
Cage size 3.2x1.5x2.1m
Safety device SAJ40-1.2
Hot galvanize parts Mast section/trolley/tie-in/cage/enclosure
Counter weight no

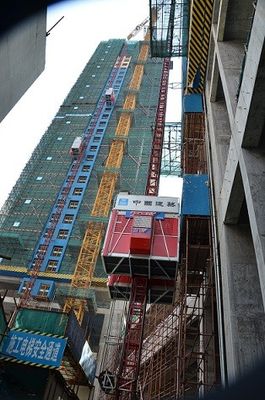

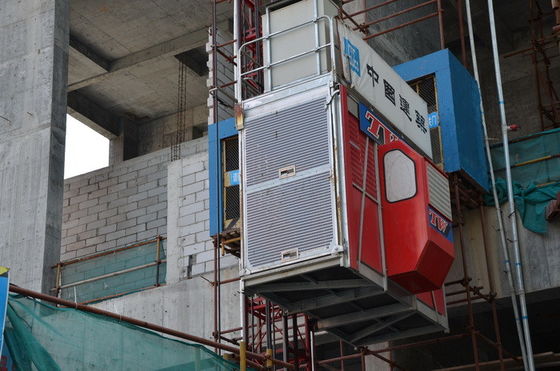

Case Show:



Single Cage 11kw Exterior Construction Elevator 150m Construction Site Hoist 0

Single Cage 11kw Exterior Construction Elevator 150m Construction Site Hoist 1Single Cage 11kw Exterior Construction Elevator 150m Construction Site Hoist 2
