Double cages mid-speed with Rack and Pinion Building Hoist/ 2000kgs Load with Inverter and hot galvanized mast

Double cages mid-speed with Rack and Pinion Building Hoist/ 2000kgs Load with Inverter and hot galvanized mast
Double cages mid-speed with Rack and Pinion Building Hoist/ 2000kgs Load with Inverter and hot galvanized mast
video play

Large Image :  Double cages mid-speed with Rack and Pinion Building Hoist/ 2000kgs Load with Inverter and hot galvanized mast

Product Details:
Place of Origin: China
Brand Name: TW-TECHWAY
Certification: CE
Model Number: SC200-200
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: 18,800USD~80,000 USD per Unit
Packaging Details: Nude in Container, 40'HQ
Delivery Time: 60 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 500 Units Per Month
Detailed Product Description
Steel Pipe: Q345B High Strength Steel Rated Load: 2000kg
Rated Speed: 0-63m/min Max. Installation Hight: 300m
Max. Passenger No.: 30 Treatment: Hot Dip Galvanization+Painting
Wall Panel: Punched Aluminium Panel
High Light:

75kw building construction hoist

,

rustproof building construction hoist

,

75kw rack and pinion hoist

SC200 -200 Double cages mid-speed with Rack and Pinion Building Hoist/ 2000kgs Load with Inverter and hot galvanized



Features:

1. Loading capacity is 2000kgs

2. Lifting speed is 0-63m/min, with inverter control type, can improve the material and people working efficiency

3. Fully hot dip galvanized mast sections, tie-in , cage, foundation frame & spare parts

4. Full Set of Safety Devices

5. Recommended cage inner dimension(LxWxH)(m): 2.5x1.3 x2.5; 3.0x1.3x2.5; 3.2x1.5x2.5; 3.6x1.5x2.5; 3.8x1.5x2.5; 4.0x1.5x2.5; 4.2x1.5x2.5, cage dimension is according to requirement of customer and special project

6. The cage color painting can be designed according to customer's requirement. Our standard color is : Yellow, red and blue.

5. Free easy wearing parts Plus One Year Warranty



Specifications:



Model SC200-200
Loading capacity 2000KG
Rated speed 0-63m/min
Motor & Gear Box 2x3x11kw
Inverter 2x75kw
Mast section size 650*650*1508mm
Cage size 3.2x1.5x2.1m
Safety device SAJ50-1.4
Hot galvanize parts Mast section/trolley
Counter weight no

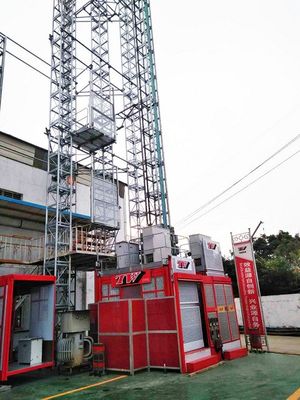

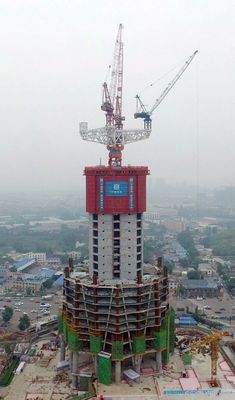

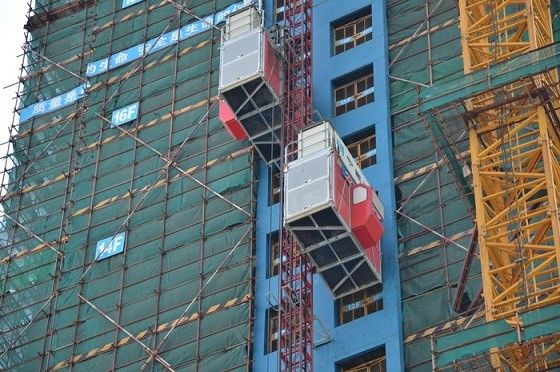

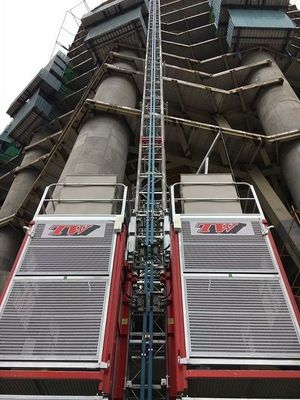

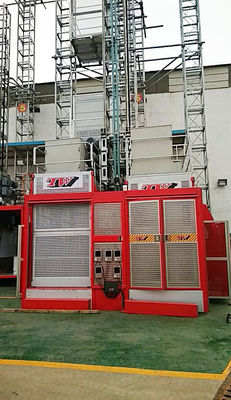

Case Show:

Double cages mid-speed with Rack and Pinion Building Hoist/ 2000kgs Load with Inverter and hot galvanized mast 0

Double cages mid-speed with Rack and Pinion Building Hoist/ 2000kgs Load with Inverter and hot galvanized mast 1Double cages mid-speed with Rack and Pinion Building Hoist/ 2000kgs Load with Inverter and hot galvanized mast 2
