Product Details:
Payment & Shipping Terms:
|
| Steel Pipe: | Q345B High Strength Steel | Rated Load: | 2000kg |
|---|---|---|---|
| Rated Speed: | 0-21m/min | Max. Installation Hight: | 300m |
| Max. Passenger No.: | 30 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| High Light: | 21m/min building material hoist,single mast building material hoist,21m/min exterior construction elevator |
||

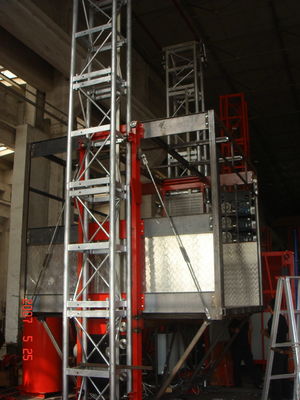

SC200 material construction hoist /Rack and Pinion Building Hoist / open top cage hot galvanized mast inverter type
Technical features:
1. Widely used in warehouse, and other construction projects;
2. Single mast or twin mast design to make sure the cage running smoothly and safety;
3. Smoothly starting and stop with inverter control type.The frequency conversion device greatly reduces mechanical wear and tear oil the elevator and its components
4. Steel structure design with scientific and rigorous calculation, meet the requirements of reasonable structure, reliable strength, light weight.
Specifications:
| Model | SC200 |
| Loading capacity | 2000KG |
| Rated speed | 0-22m/min |
| Motor & Gear Box | 2x9.5kw |
| Inverter | 37kw |
| Mast section size | 650*650*1508mm |
| Cage size | 3.2x1.5x2.1m |
| Safety device | SAJ40-1.2 |
| Hot galvanize parts | Mast section/trolley |
| Counterweight | Yes |

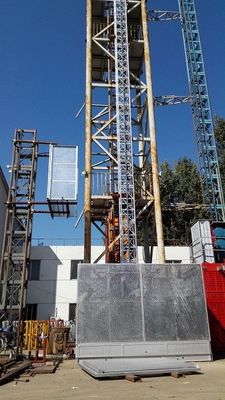

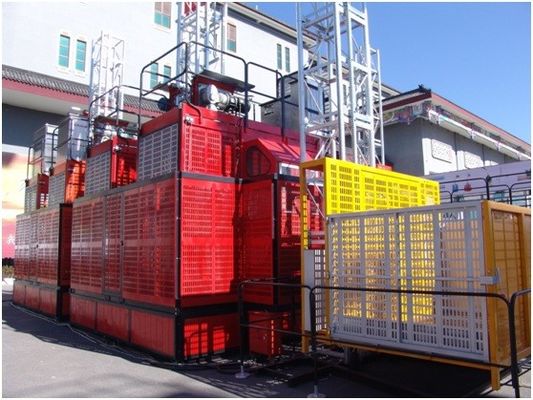

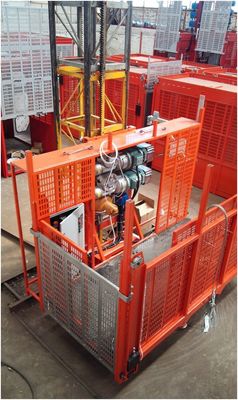

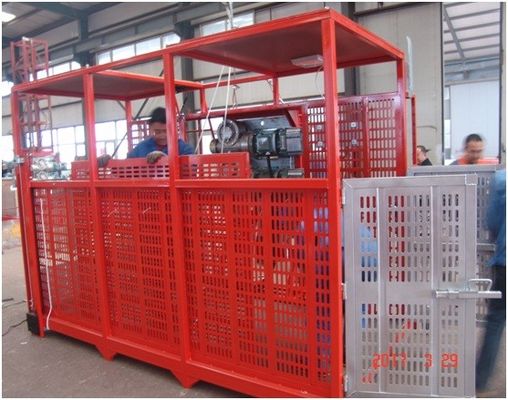

Case Show:
