Steel Pipe: | Q345B High Strength Steel | Rated Load: | 2000kg |
---|---|---|---|
Rated Speed: | 0-21m/min | Max. Installation Hight: | 300m |
Max. Passenger No.: | 30 | Treatment: | Hot Dip Galvanization+Painting |
Wall Panel: | Punched Aluminium Panel | ||
High Light: | 2ton construction material lifting hoist,22m/min construction material lifting hoist,2ton building site hoist |

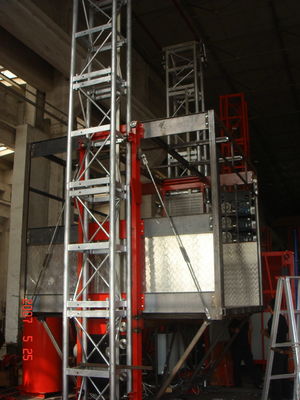

2000KGS load material construction hoist /Rack and Pinion Building Hoist / open top cage hot galvanized mast

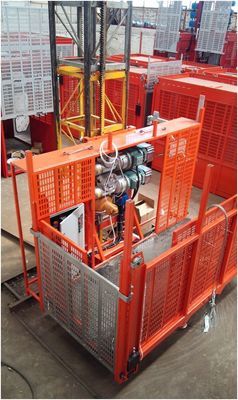

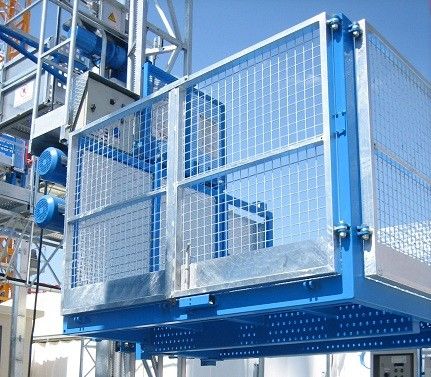

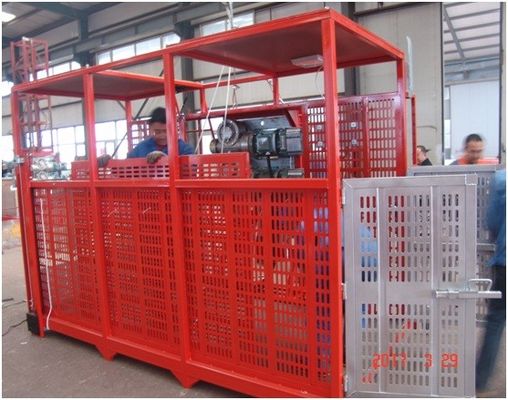

Open Top Cage Technical features:
1. Widely used in warehouse, and other construction projects;
2. Single mast or twin mast design to make sure the cage running smoothly and safety;
3. Smoothly starting and stop with inverter control type.The frequency conversion device greatly reduces mechanical wear and tear oil the elevator and its components
4. Steel structure design with scientific and rigorous calculation, meet the requirements of reasonable structure, reliable strength, light weight.
Open Top Cage Hoist Specifications:
Model | SC200 |
Loading capacity | 2000KG |
Rated speed | 0-22m/min |
Motor & Gear Box | 2x9.5kw |
Inverter | 37kw |
Mast section size | 650*650*1508mm |
Cage size | 3.2x1.5x2.1m |
Safety device | SAJ40-1.2 |
Hot galvanize parts | Mast section/trolley |
Counterweight | Yes |
Competitive Points of Open Top Cage Hoist
1.Use Q345B steel; work with China three major steel mills, quality is more guaranteed;Optimized structural design, with reasonable lightweight treatment, the overall structure force is more reasonable; ANSYS finite element model was used to calculate the structural strength, and the safety factor was more than 2 times.
2. Fully hot galvanized parts: It is not only hot galvanized mast sections, we also offer fully steel structure hot galvanized, such as the cage, tie-in, cable trolley, ground enclosure etc. It will long the working time for the whole steel structure, and also can make sure the steel structure in safety working condition.
Our Services
1.14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
2.Delivery with English user manual, parts manual, product certification and other relevant certificates.
FAQ
Q1. Do you have any MOQ limit for led light order?
A: Low MOQ, 1 unit is available.
Q2. How do you ship the goods and how long does it take to arrive?
A: By sea shipping with high cube containers for standard package. For delivery time is depends on the actual sea transportation time.
Q3. How to proceed an order ?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the specifications and places deposit for formal order. Fourthly We arrange the production.

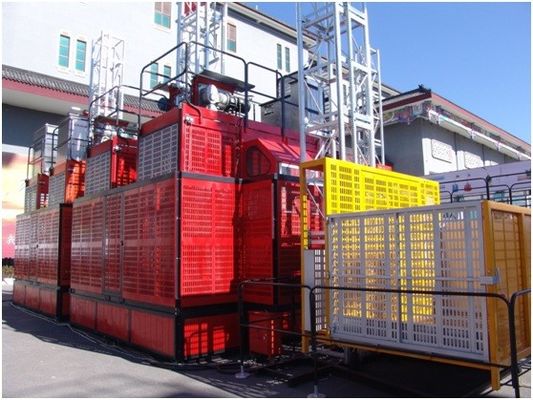

Case Show:
