| Steel Pipe: | Q345B High Strength Steel | Rated Load: | 1600kg/cage |
|---|---|---|---|
| Rated Speed: | 0-22m/min | Max. Installation Hight: | 300m |
| Max. Passenger No.: | 30 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| High Light: | twin mast building material hoist,SC160/160 building material hoist,30 passenger hoist lift |
||

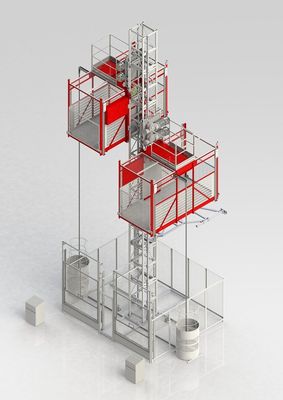

SC160-160 double cages material building Hoist/Rack and Pinion hoist / without top/ open top building hoist
Technical features:
1. Widely used in warehouse, and other construction projects;
2. Single mast or twin mast design to make sure the cage running smoothly and safety;
3. Smoothly starting and stop with inverter control type.The frequency conversion device greatly reduces mechanical wear and tear oil the elevator and its components
4. Steel structure design with scientific and rigorous calculation, meet the requirements of reasonable structure, reliable strength, light weight.
Specifications:
| Model | SC160-160 |
| Loading capacity | 1600KG/CAGE |
| Rated speed | 0-22m/min |
| Motor & Gear Box | 2X2x11kw |
| Inverter | 2X37kw |
| Mast section size | 650*650*1508mm |
| Cage size | 3.2x1.5x2.1m |
| Safety device | SAJ40-1.2 |
| Hot galvanize parts | Mast section/trolley |
| Counterweight | Yes |

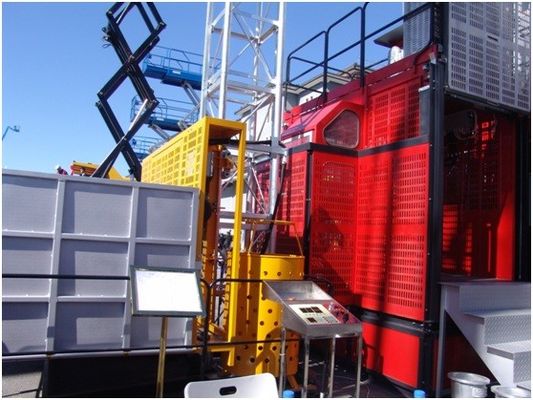

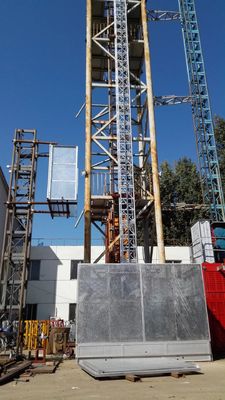

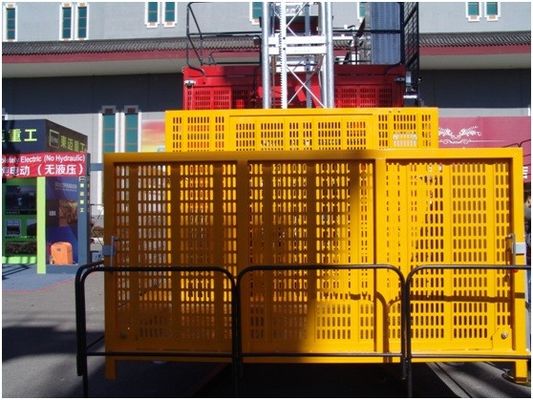

Case Show:
