| Steel Pipe: | Q345B High Strength Steel | Rated Load: | 3000kg |
|---|---|---|---|
| Rated Speed: | 0-90m/min | Max. Installation Hight: | 300m |
| Max. Passenger No.: | 30 | Treatment: | Hot Dip Galvanization+Painting |
| Wall Panel: | Punched Aluminium Panel | ||
| High Light: | Q345B steel construction material lifting hoist,SC300/300 construction material lifting hoist,3ton material hoist construction |
||
SC300 -300 Double cages with Rack and Pinion Building Hoist/ 3000kgs Load with Inverter and hot galvanized masts hoist
Features:
1. Loading capacity is 3000kgs
2. Lifting speed is 0-90m/min, with inverter control type
3. Fully hot dip galvanized mast sections, tie-in , cage, foundation frame & spare parts
4. Full Set of Safety Devices
5. Recommended cage inner dimension(LxWxH)(m): 2.5x1.3 x2.5; 3.0x1.3x2.5; 3.2x1.5x2.5; 3.6x1.5x2.5; 3.8x1.5x2.5; 4.0x1.5x2.5; 4.2x1.5x2.5, cage dimension is according to requirement of customer and special project
6. The cage color painting can be designed according to customer's requirement. Our standard color is : Yellow, red and blue.
5. Free easy wearing parts Plus One Year Warranty
Specifications:
| Model | SC300-300 |
| Loading capacity | 3000KG |
| Rated speed | 0-90m/min |
| Motor & Gear Box | 2x3x22kw |
| Inverter | 2x110kw |
| Mast section size | 650*650*1508mm |
| Cage size | 3.2x1.5x2.1m |
| Safety device | SAJ65-2.0 |
| Hot galvanize parts | Mast section/trolley |
| Counter weight | no |

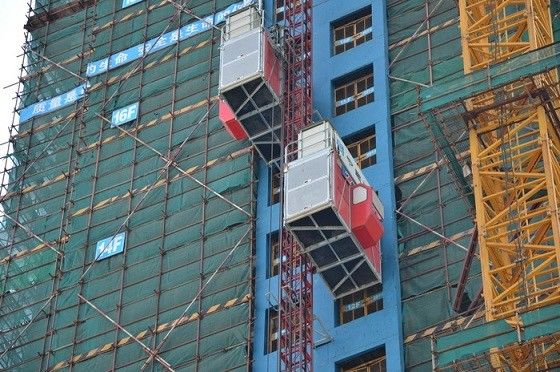

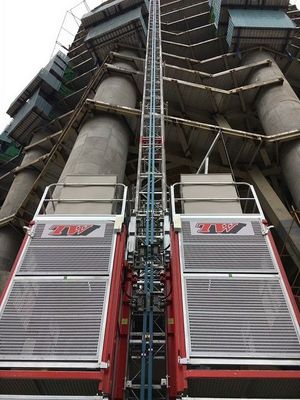

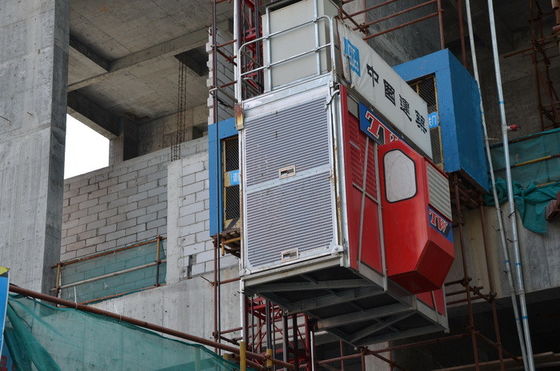

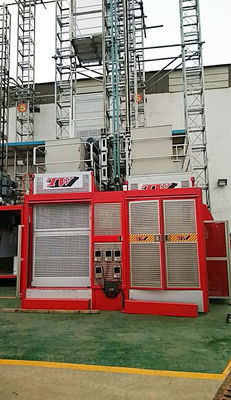

Case Show:
