Product Details:
Payment & Shipping Terms:
|
Steel Pipe: | Q345B High Strength Steel | Rated Load: | 3000kg Per Cart |
---|---|---|---|
Rated Speed: | 0-96m/min | Max. Installation Hight: | 500m |
Max. Passenger No.: | 18 | Treatment: | Hot Dip Galvanization+Painting |
Wall Panel: | Punched Aluminium Panel | ||
High Light: | 96m/min temporary construction elevators,110kw temporary construction elevators,96m/min construction man lift |
SC300 single cage 0-96m/min Building Hoist/Construction Elevator with Frequency Inverter Rack and Pinion Building Hoist
Features:
1. The safety device is very complete and reliable, the anti-drop safety device with national patent technology makes this product more safe.
2. The driving mechanism is placed on the top of the cage, which enhances the interior space and brings great convenience to operation and transportation.
3. The SC building hoist is standardized and modularized. It can also be different with the most reasonable configuration to meet the different needs of customer.
4. Simple circuit of electronic control system makes an easy and reliable operation and maintenance.
5. Steel structure design with scientific and rigorous calculation, meet the requirements of reasonable structure, reliable strength, light weight.
TW-TECHWAY Construction Elevator is the Top Sales Brand in China, with CE certificate.
Thanks to our continuous investment & innovation, we had successfully built the most advanced construction elevator/building hoist production facility in China! The first fully-automated production line equipped with the latest A.I technology in the country.Every year we are supplying more than 6000 units of building hoists/construction elevators to the whold world.
The hoist can be installed and disassembled very easily and can also be heightened with the constant increase of building, According to customers' requirements, the cage can be single or double. The single cage building hoist can become a double cage building hoist by adding one cage and other components. The payload can be doubled if equipped with counterweight to meet different customers' requirements.
We have rich experience in the R&D and manufacturing of Construction Hoists. All of our buidling hoist are made under strict quality control and management system in our factory. It includes fixed speed building hoist, Low, Middle, high speed buidling hoist.
Specification:
Model | SC300 |
RATED LOAD(kg) | 3000 |
INSTALLATION HEIGHT (m) | Max. 500m |
SPEED(m/min) | 0-96 |
CAGE SIZE (L×W×H/m) |
3.2x1.5x2.1 |
MOTOR(kw) |
3×22 BEVEL TYPE GEARBOOX |
INVERTOR(kw) | 110 |
MAST SECTION(mm) | 650×650×1508 (HDG, SIGNLE RACK) |
MAST QUANTITY | THICKNESS: 4.5mm |
TIE-IN | TYPE: V (SPECIAL) / TYPE VI |
CABLE | WITH CABLE OR BUSBAR |
SAFETY DEVICE | SAJ65-2.0 |

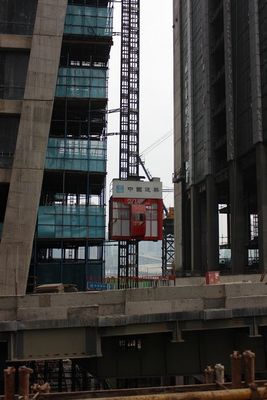

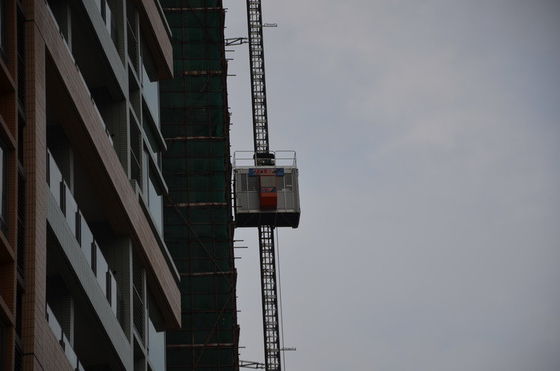

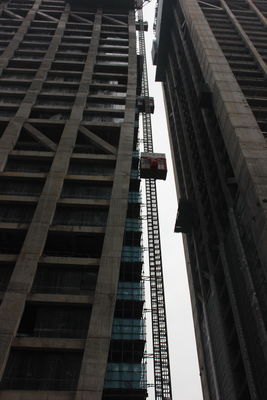

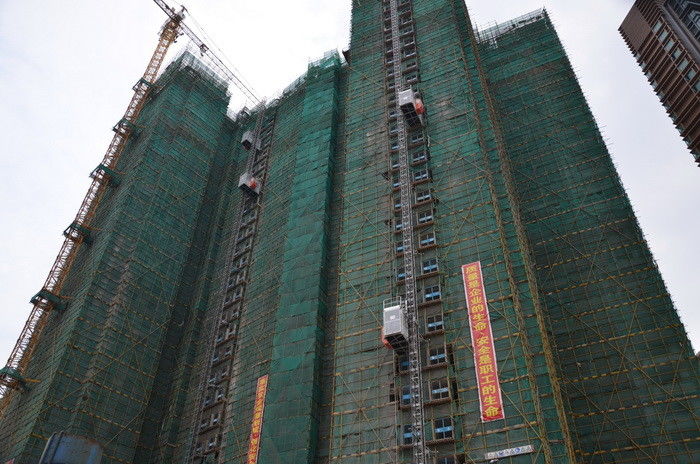

Case Show:
