Hot Galvanized 300m 46m/Min Rack And Pinion Construction Hoist For Passenger

Hot Galvanized 300m 46m/Min Rack And Pinion Construction Hoist For Passenger

Brand Name:	TW-TECHWAY
Model Number:	SC200-200
MOQ:	1Unit
Price:	18,800USD~80,000 USD per Unit
Payment Terms:	L/C, T/T
Supply Ability:	500 Units Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Steel Pipe:

Q345B High Strength Steel

Rated Load:

2000kg

Rated Speed:

0-46m/min

Max. Installation Hight:

300m

Max. Passenger No.:

Treatment:

Hot Dip Galvanization+Painting

Wall Panel:

Punched Aluminium Panel

Packaging Details:

Nude in Container, 40'HQ

Supply Ability:

500 Units Per Month

Highlight:

hot galvanized rack and pinion construction hoist

46m/min rack and pinion construction hoist

300m construction passenger hoist

Product Description

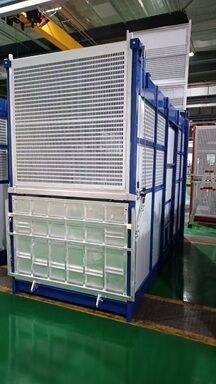

SC200 -200 Double cages 0-46m/min with Rack and Pinion Building Hoist/ 2000kgs Load with Inverter and hot galvanized

Features:

1. Loading capacity is 2000kgs

2. Lifting speed is 0-46m/min, with inverter control type, can improve the material and people working efficiency

3. Fully hot dip galvanized mast sections, tie-in , cage, foundation frame & spare parts

4. Starting and braking smoothly.

5. Recommended cage inner dimension(LxWxH)(m): 2.5x1.3 x2.5; 3.0x1.3x2.5; 3.2x1.5x2.5; 3.6x1.5x2.5; 3.8x1.5x2.5; 4.0x1.5x2.5; 4.2x1.5x2.5, cage dimension is according to requirement of customer and special project

6. The cage color painting can be designed according to customer's requirement. Our standard color is : Yellow, red and blue

7. Reduce mechanical wear and mechanical service life extension.

8. Free easy wearing parts Plus One Year Warranty.

Specifications:

Model	SC200-200
Loading capacity	2000KG
Rated speed	0-46m/min
Motor & Gear Box	2x2x11kw
Inverter	2x37kw
Mast section size	6506501508mm
Cage size	3.2x1.5x2.1m
Safety device	SAJ40-1.2
Hot galvanize parts	Mast section/trolley
Counter weight	no

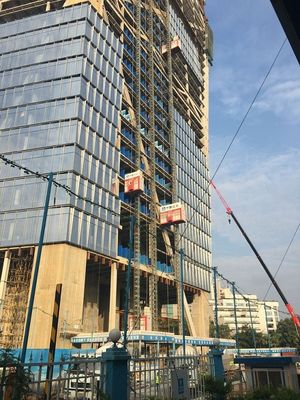

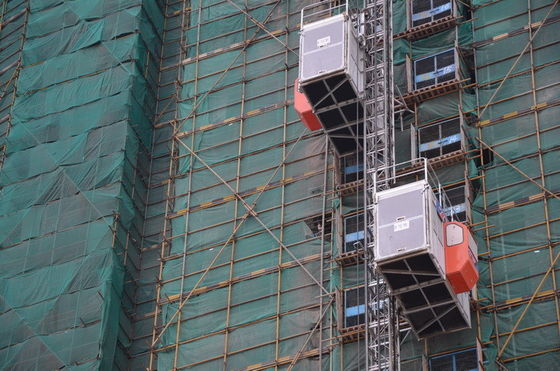

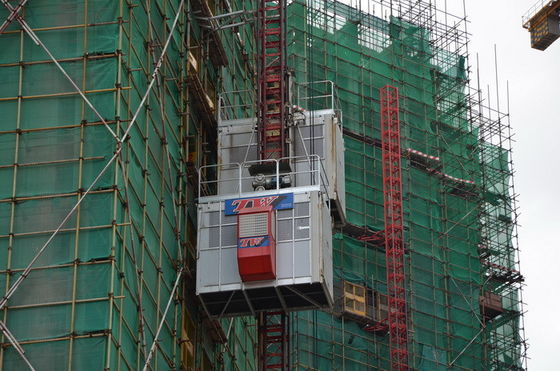

Case Show:
