Intelligent SC200/200 58m/Min Building Material Hoist In Construction Site

Intelligent SC200/200 58m/Min Building Material Hoist In Construction Site
Intelligent SC200/200 58m/Min Building Material Hoist In Construction Site
video play

Large Image :  Intelligent SC200/200 58m/Min Building Material Hoist In Construction Site

Product Details:
Place of Origin: China
Brand Name: TW-TECHWAY
Certification: CE
Model Number: SC200-200
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: 18,800USD~80,000 USD per Unit
Packaging Details: Nude in Container, 2x40'HQ for double cages and height of 40 meters.
Delivery Time: 60 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 500 Units Per Month
Detailed Product Description
Steel Pipe: Q345B High Strength Steel Rated Load: 2000kg/cage
Rated Speed: 0-58m/min Max. Installation Hight: 300m
Max. Passenger No.: 30 Treatment: Hot Dip Galvanization+Painting
Wall Panel: Punched Aluminium Panel
High Light:

SC200/200 building material hoist

,

58m/min building material hoist

,

SC200/200 hoist in construction site

SC200-200 intelligent building Hoist/Rack and Pinion hoist / intelligent operation elevator of high rise building



Intelligent Building Hoist Technical features:



Intelligent driving construction elevator realizes a series of functions, such as automatic stop floor, intelligent layer selection, automatic switch cage door and layer door, real-time video monitoring , data recording, anti-clamping, channel detection, etc. Two intelligent driving constuction lifts were installed and installed successfully in Chengdu green 468 project.



Intelligent Building Hoist Specifications:



Model SC200-200
Loading capacity 2000KG/CAGE
Rated speed 0-58 m/min
Motor & Gear Box 2X2x13kw
Inverter 2X45kw
Mast section size 650*650*1508mm
Cage size 3.2x1.5x2.1m
Safety device SAJ50-1.4
Hot galvanize parts Mast section/trolley
Counterweight Yes



Competitive Points of Intelligent Building Hoist

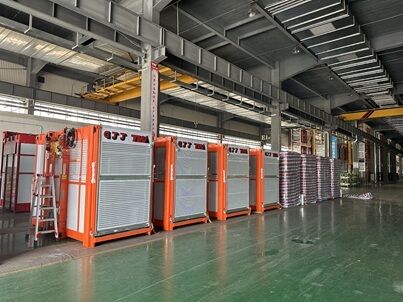

1.Advanced production facility in hoist manufacturing industry. Such as Automatic laser cutting machine, fully automatic welding robot, automatic hydraulic bending & pressing machine etc.



2. Fully hot galvanized parts: It is not only hot galvanized mast sections, we also offer fully steel structure hot galvanized, such as the cage, tie-in, cable trolley, ground enclosure etc. It will long the working time for the whole steel structure, and also can make sure the steel structure in safety working condition.

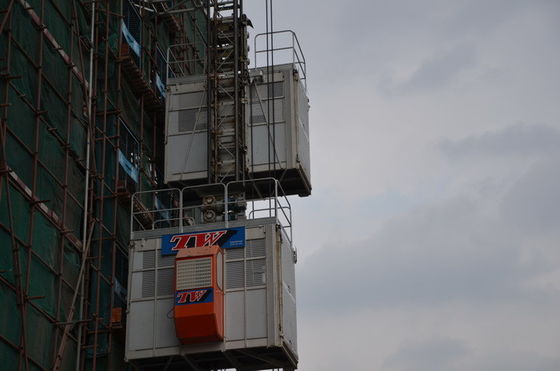

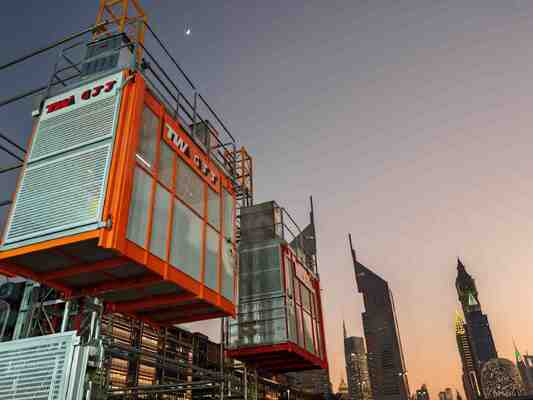

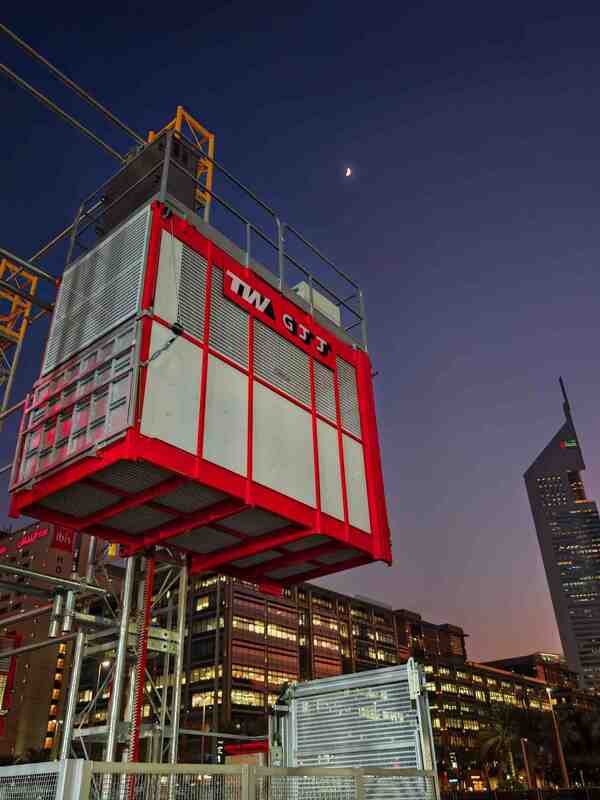

Case Show:

Intelligent SC200/200 58m/Min Building Material Hoist In Construction Site 0Intelligent SC200/200 58m/Min Building Material Hoist In Construction Site 1Intelligent SC200/200 58m/Min Building Material Hoist In Construction Site 2
