Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel

Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel

Brand Name:	TW-TECHWAY
Model Number:	SCN100G
MOQ:	1Unit
Price:	18,800USD~80,000 USD per Unit
Payment Terms:	L/C, T/T
Supply Ability:	500 Units Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Steel Pipe:

Q345B High Strength Steel

Rated Load:

1000kg/cage

Rated Speed:

0-46 M/min

Max. Installation Hight:

300m

Max. Passenger No.:

Treatment:

Hot Dip Galvanization+Painting

Wall Panel:

Punched Aluminium Panel

Packaging Details:

Nude in Container, 40'HQ

Supply Ability:

500 Units Per Month

Highlight:

1000kg rack and pinion hoist

Q345B steel rack and pinion hoist

1000kg material hoist lift

Product Description

SC100G inverse type installing hoist/Rack and Pinion hoist / intelligent operation elevator for tunnel

Technical features:

The reverse type building hoist consists of two major parts: mast section transmission system on left side of the mast and SC100G building hoist on the right side of the mast.

The transmission system is fixed on the steel structures, and it takes the overall weights on the mast section and holds the mast sections still in the air. The building hoist system works as standard hoist for material and passenger transportation. The building hoist system will stop work when adding height to the mast sections and no entrance is allowed to the building hoist. After adding new masts, the transmission system will send the mast sections downwards vertically

1. Used in tunnels, subway and high-rise foundation pits;

2. Elevator foundation at the top, at the same time, the top of the standard section is raised and then transmitted downward;

3. Rolling wall and special transmission mechanism;

4. Conversion control system,stable and reliable.

Specifications:

Model	SCN100G
Loading capacity	1000KG/CAGE
Rated speed	0-46 m/min
Motor & Gear Box	2X11kw
Inverter	37kw
Mast section size	6506501508mm
Cage size	2.5x1.3x2.5m
Safety device	SAJ40-1.2
Hot galvanize parts	Mast section/trolley
Counterweight	no

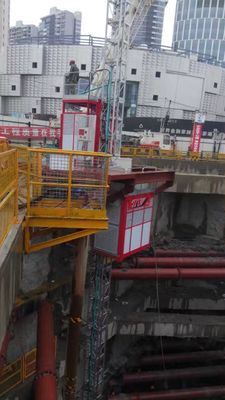

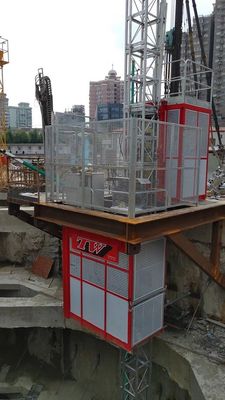

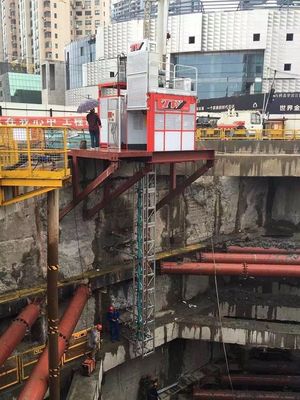

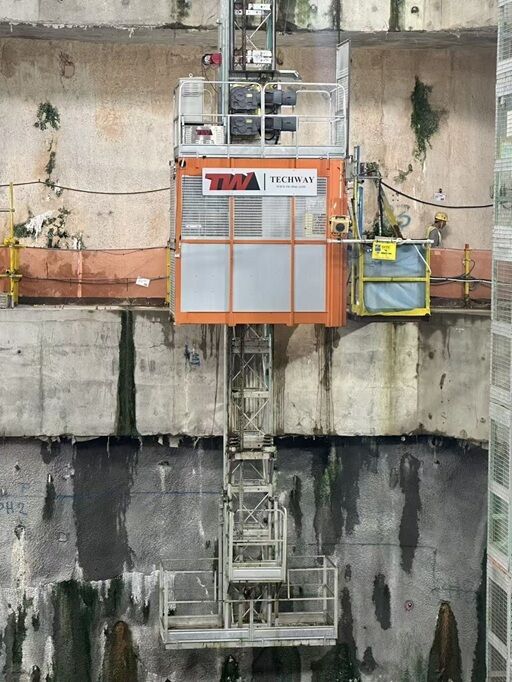

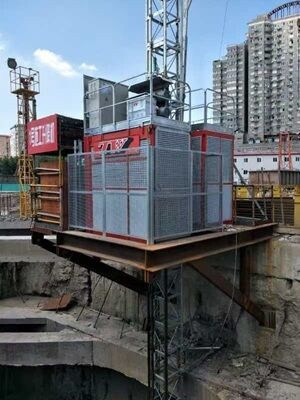

Case Show:

Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel 0

Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel 1
