Max. Load: | 5000kg | Platform Width: | 2.6m |
---|---|---|---|
Max. Outboard Length: | 5.3m | Treatment: | Main Frame & Props Are With Hot Dip Galvanization |
Painting: | Sand Blasting & Epoxy Paint | ||
High Light: | 2.6m Width Retractable Loading Deck,2600mm Width Material Loading Platform,Tower Crane Material Loading Platform |
Max. Load 5000kg Retractable Material Loading Platform Width2600mm MLP2600-H
Models
The standard props allow a minimum height of 2400mm and a maximum height of 3300mm.Please consult with your dealer for other special requirements. We can design special props according to your requirements. Furthermore, MLP 2200-L, MLP 2200-H, MLP 2600,MLP 3200, MLP 4200 can also be fixed to the concrete slab with bolts through slabs according to actual needs.
Function

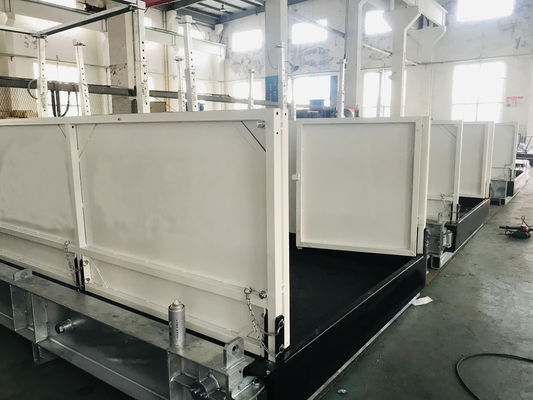

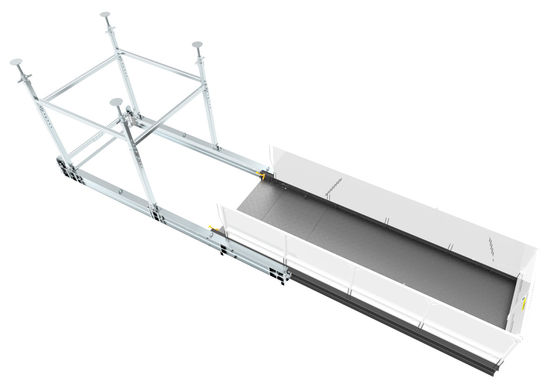

MLP series retractable loading deck is a unique product to improve materials handling efficiency and safety for the multi-storey and high rise construction sectors. It offers a cost effective method of delivering goods to different
levels of a building when used with a crane. When goods are required to be delivered toa particular floor levels,
all the decks installed above that level can be retracted, enabling the crane to operate unobstructed.
Application
The Crane Loading Deck is specially designed for coping with the challenges of multi-story construction sites. Our crane loading decks make access for tools and materials to different levels of multi-story construction sites safe and simple, while increase the working efficiency of tower cranes.
Crane Loading Deck Features
1. Easy pull/push system
2. Max. outboard length: 5.3m
3. Max. load capacity: 5ton
4. Platform width: 2.8m

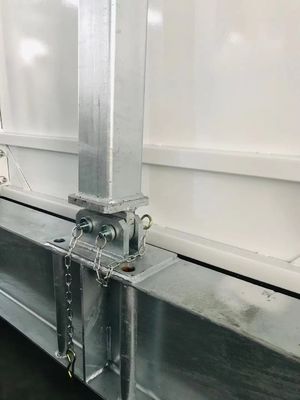

5. With adjustable props for different floor heights
6. Compact design makes the transportation & installation much easier
7. With easy locking system
8. All pins are with chains to keep them from falling or losing
