MLP3200 Construction Retractable Loading Platform 3.2m Width For Tower Crane

China GUANGZHOU TECHWAY MACHINERY CORPORATION certification
China GUANGZHOU TECHWAY MACHINERY CORPORATION certification
TW is my very reliable partner for building hoist, we have been working with each other since year 2015, and I am very happy with their performance and support. Very glad they have newly opened the most advanced production facilities in China, and hope I could be there for their official ceremony once the COVID is over.

—— Lederberg Sha***

Their material loading bay is really fantastic, with their qualified products, now we are expanding our rental & sales business from Sydney to more cities in Australia.

—— Jay JAW***

I'm Online Chat Now

MLP3200 Construction Retractable Loading Platform 3.2m Width For Tower Crane

MLP3200 Construction Retractable Loading Platform 3.2m Width For Tower Crane
MLP3200 Construction Retractable Loading Platform 3.2m Width For Tower Crane
video play

Large Image :  MLP3200 Construction Retractable Loading Platform 3.2m Width For Tower Crane

Product Details:
Place of Origin: China
Brand Name: TECHWAY
Certification: Mill Certificate & Full-load Certificate
Model Number: MLP3200-H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD9,200.00-10,300.00 per unit
Packaging Details: 2 Units in 1x20'GP, Nude in Container
Delivery Time: 40 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 100 Units per month
Detailed Product Description
Platform Width: 3.2m Max. Load: 5000kg
Max. Outboard Length: 5.3m Treatment: Main Frame & Props Are With Hot Dip Galvanization
Painting: Sand Blasting & Epoxy Paint
High Light:

Retractable Loading Platform 3.2m Width

,

Construction Tower Crane Loading Platform

,

Construction Tower Crane Loading Deck

MLP3200 Retractable Loading Deck 3.2m Width With Two Or Four Props Method For Construction Sites Tower Crane

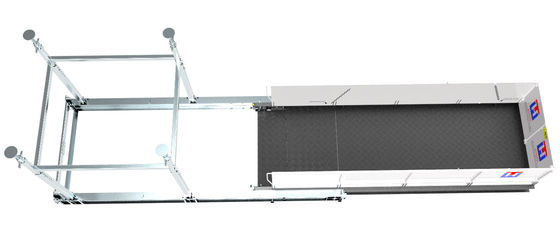

Crane Loading Deck Features

1. Easy pull/push system

2. Max. outboard length: 5.3m

3. Max. load capacity: 5ton

4. Platform width: 3.2m

5. With adjustable props for different floor heights

6. Compact design makes the transportation & installation much easier

7. With easy locking system

8. All pins are with chains to keep them from falling or losing



Application

The Crane Loading Deck is specially designed for coping with the challenges of multi-story construction sites. Our crane loading decks make access for tools and materials to different levels of multi-story construction sites safe and simple, while increase the working efficiency of tower cranes.



Function

MLP series retractable loading deck is a unique product to improve materials handling efficiency and safety for the multi-storey and high rise construction sectors. It offers a cost effective method of delivering goods to different
levels of a building when used with a crane. When goods are required to be delivered toa particular floor levels,
all the decks installed above that level can be retracted, enabling the crane to operate unobstructed.



Models

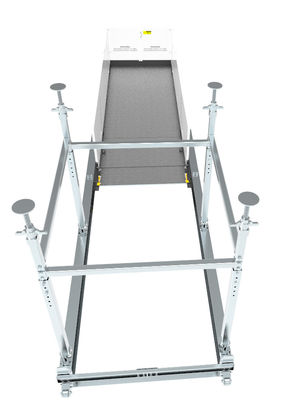

The standard props allow a minimum height of 2400mm and a maximum height of 3300mm.Please consult with your dealer for other special requirements. We can design special props according to your requirements. Furthermore, MLP 2200-L, MLP 2200-H, MLP 2600,MLP 3200, MLP 4200 can also be fixed to the concrete slab with bolts through slabs according to actual needs.



MLP3200 Construction Retractable Loading Platform 3.2m Width For Tower Crane 0



MLP3200 Construction Retractable Loading Platform 3.2m Width For Tower Crane 1
