Product Details:
Payment & Shipping Terms:
|
| Platform Width: | 4.2m | Max. Load: | 5000kg |
|---|---|---|---|
| Max. Outboard Length: | 5.3m | Painting: | Sand Blasting & Epoxy Paint |
| Treatment: | Main Frame & Props Are With Hot Dip Galvanization | ||
| High Light: | Crane Loading Platform 3.2m Width,Four Props Construction Loading Platforms,3.2m Width Construction Loading Platforms |
||

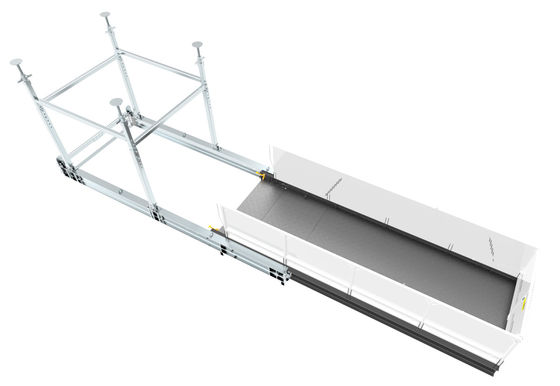

MLP3200 Retractable Loading Deck 3.2m Width With Two Or Four Props Method For Construction Sites Tower Crane
Function
MLP series retractable loading deck is a unique product to improve materials handling efficiency and safety for the multi-storey and high rise construction sectors. It offers a cost effective method of delivering goods to different
levels of a building when used with a crane. When goods are required to be delivered toa particular floor levels,
all the decks installed above that level can be retracted, enabling the crane to operate unobstructed.
Application

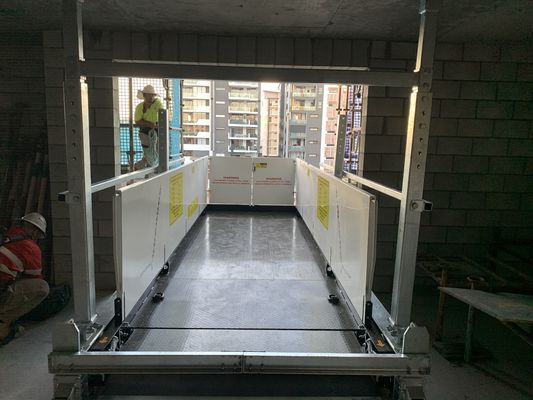

The Crane Loading Deck is specially designed for coping with the challenges of multi-story construction sites. Our crane loading decks make access for tools and materials to different levels of multi-story construction sites safe and simple, while increase the working efficiency of tower cranes.
Models
Crane Loading Deck Features
1. Easy pull/push system

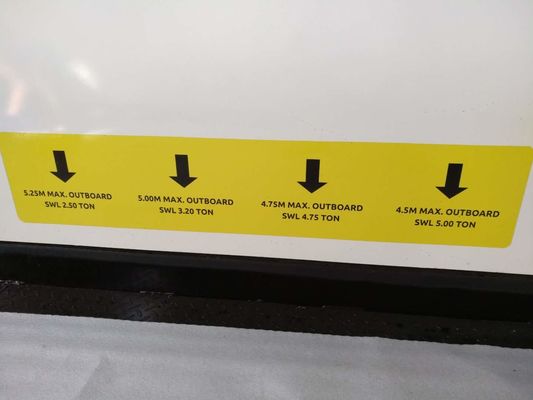

2. Max. outboard length: 5.3m
3. Max. load capacity: 5ton
4. Platform width: 4.2m
5. With adjustable props for different floor heights
6. Compact design makes the transportation & installation much easier
7. With easy locking system
8. All pins are with chains to keep them from falling or losing
