Product Details:
Payment & Shipping Terms:
|
| Platform Width: | 2.2m | Max. Outboard Length: | 5.3m |
|---|---|---|---|
| Painting: | Sand Blasting & Epoxy Paint | Max. Load: | 5000kg |
| Treatment: | Main Frame & Props Are With Hot Dip Galvanization | ||
| High Light: | Construction Site Material Crane Deck,2.2m Width Retractable Crane Deck,Material Transport Loading Deck |
||
2.2m Width Retractable Or Solid Material Crane Deck For Material Transport At Construction Site
Introduction
The MLP LOAD DECK is a new product developed.according to the market application trend in the past three years. Its function is to transport the materials, equipment and tools needed for construction to the construction floor or the garbage generated by the construction.
A transfer station that transports waste and tools to the ground.

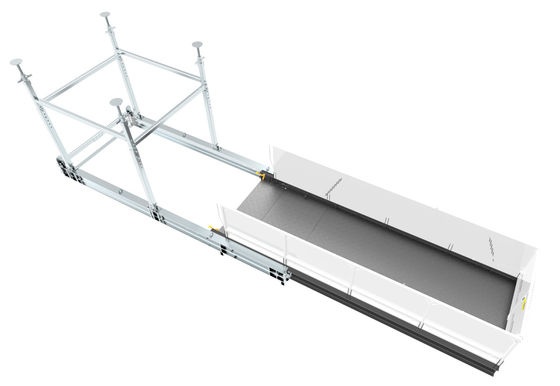

MLP series retractable load deck is a unique product to improve materials handling efficiency and safety for the multi storey and high rise construction sectors. It offers a cost effective method of delivering goods to different
levels of a building when used with a crane. When goods are required to be delivered to
a particular floor level, all the deck installed above that level can be retracted, enabling the crane to operate unobstructed.
Application

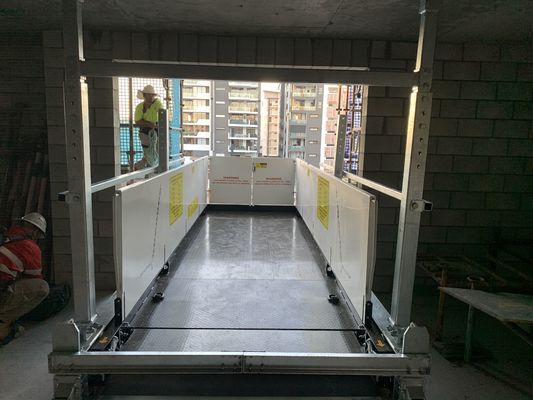

The Crane Loading Deck is specially designed for coping with the challenges of multi-story construction sites. Our crane loading decks make access for tools and materials to different levels of multi-story construction sites safe and simple, while increase the working efficiency of tower cranes.
Models
Crane Loading Deck Features
1. Easy pull/push system
2. Max. outboard length: 5.3m
3. Max. load capacity: 5ton
4. Platform width: 3.2m
5. With adjustable props for different floor heights
6. Compact design makes the transportation & installation much easier
7. With easy locking system
8. All pins are with chains to keep them from falling or losing
Function
MLP series retractable loading deck is a unique product to improve materials handling efficiency and safety for the multi-storey and high rise construction sectors. It offers a cost effective method of delivering goods to different
levels of a building when used with a crane. When goods are required to be delivered toa particular floor levels,
all the decks installed above that level can be retracted, enabling the crane to operate unobstructed.

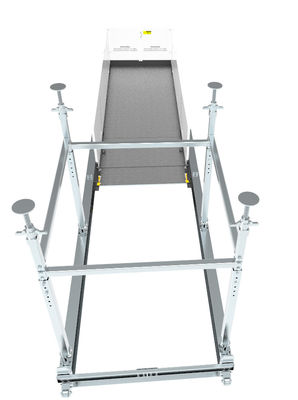

Support Props Height
The standard props allow a minimum height of 2400mm and a maximum height of 3300mm.Consult
your dealer for other special requirements. We can design special props according to your requirements. Furthermore, MLP 2200-L, MLP 2200-H, MLP 2600,MLP 3200, MLP 4200 can also be fixed to the concrete slab with bolts through slab if the customer needs.
