|Painting:||Sand Blasting & Epoxy Paint||Platform Width:||2.8m|
|Max. Load:||5000kg||Max. Outboard Length:||5.3m|
|Treatment:||Main Frame & Props Are With Hot Dip Galvanization|
2.8m Width Materials Handling Platform,
Adjustable Props Material Loading Platform,
Retractable Loading Platform For Construction
2.8m Width Retractable Or Solid Material Crane Deck MLP2800 For Material Transport At Construction Site
MLP series retractable load decks have four types: MLP 2200-L, MLP 2200, MLP 3200 and MLP 4200 and the allowable maximum load capacity for uniform distribution load is 5t.
The type MLP 2200 is designed to be able to transport with container.

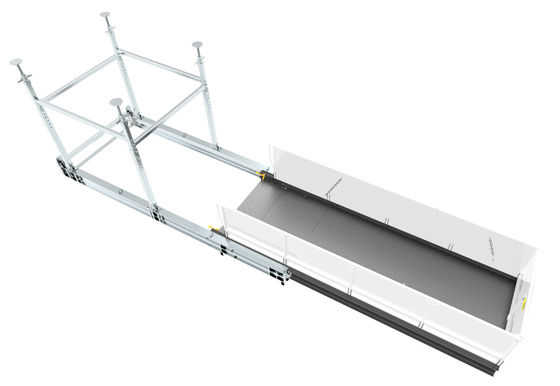

Support Props Height
The standard props allow a minimum height of 2400mm and a maximum height of 3300mm.Consult
your dealer for other special requirements. We can design special props according to your requirements. Furthermore, MLP 2200-L, MLP 2200-H, MLP 2600,MLP 3200, MLP 4200 can also be fixed to the concrete slab with bolts through slab if the customer needs.
Crane Loading Deck Features
1. Easy pull/push system
2. Max. outboard length: 5.3m
3. Max. load capacity: 5ton
4. Platform width: 3.2m
5. With adjustable props for different floor heights
6. Compact design makes the transportation & installation much easier

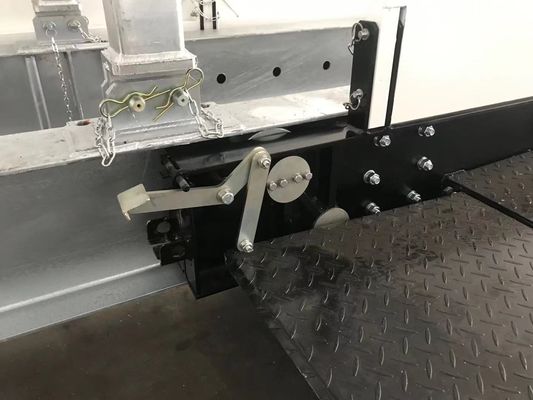

7. With easy locking system
8. All pins are with chains to keep them from falling or losing
MLP series retractable loading deck is a unique product to improve materials handling efficiency and safety for the multi-storey and high rise construction sectors. It offers a cost effective method of delivering goods to different
levels of a building when used with a crane. When goods are required to be delivered toa particular floor levels,
all the decks installed above that level can be retracted, enabling the crane to operate unobstructed.
The Crane Loading Deck is specially designed for coping with the challenges of multi-story construction sites. Our crane loading decks make access for tools and materials to different levels of multi-story construction sites safe and simple, while increase the working efficiency of tower cranes.
Forces on the Building or Structure
The deadweight and load of the load deck apply to the ceiling and the concrete slab by the support
props or the fixing anchoring bolts. The forces on the ceiling or the slab floor of the building can be provided.
