Product Details:
Payment & Shipping Terms:
|
| Max. Outboard Length: | 5.3m | Platform Width: | 2.6m |
|---|---|---|---|
| Color: | As Per Customer | Max. Load: | 5000kg |
| Painting: | Sand Blasting & Epoxy Paint | Treatment: | Main Frame & Props Are With Hot Dip Galvanization |
| High Light: | 2600mm Width Crane Lifting Platform,Construction Crane Loading Platform Device,Adjustable Props Crane Lifting Platform |
||
2200mm Width Retractable Material Cantideck MLP2200 Used At High-rise Construction Site
Crane Loading Deck Features
1. Easy pull/push system
2. Max. outboard length: 5.3m
3. Max. load capacity: 5ton
4. Platform width: 3.2m
5. With adjustable props for different floor heights
6. Compact design makes the transportation & installation much easier
7. With easy locking system
8. All pins are with chains to keep them from falling or losing
Introduction

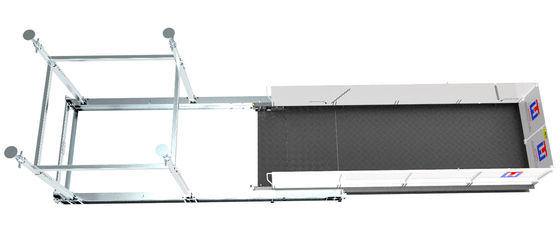

MLP series retractable load deck mainly consist of stationary frame, moving frame and adjustable support props. The stationary frame is located on the floor slab of the building and a “H” frame in stationary frame is kept close to the slab edge; the movable deck rolls in or out on the stationary frame by the rollers fixed in the stationary frame and movable deck. To receive the material, rolls the movable deck out of the building edge.
Function
MLP series retractable loading deck is a unique product to improve materials handling efficiency and safety for the multi-storey and high rise construction sectors. It offers a cost effective method of delivering goods to different
levels of a building when used with a crane. When goods are required to be delivered toa particular floor levels,
all the decks installed above that level can be retracted, enabling the crane to operate unobstructed.

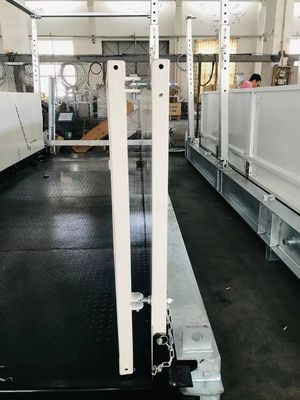

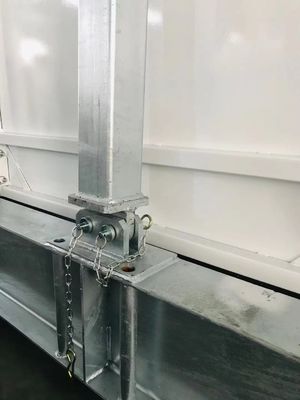

Support Props Height
The standard props allow a minimum height of 2400mm and a maximum height of 3300mm.Consult
your dealer for other special requirements. We can design special props according to your requirements. Furthermore, MLP 2200-L, MLP 2200-H, MLP 2600,MLP 3200, MLP 4200 can also be fixed to the concrete slab with bolts through slab if the customer needs.
Models
Application
The Crane Loading Deck is specially designed for coping with the challenges of multi-story construction sites. Our crane loading decks make access for tools and materials to different levels of multi-story construction sites safe and simple, while increase the working efficiency of tower cranes.
