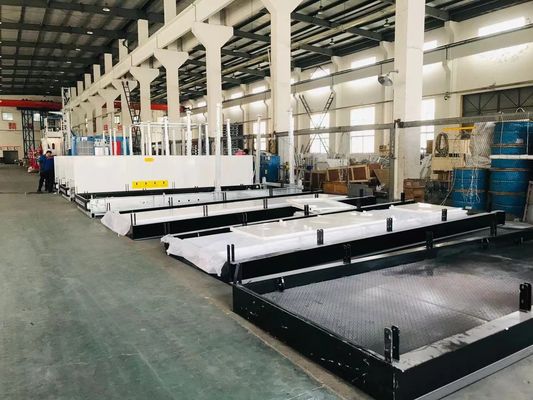

Factory Tour
Quality Control
Contact Us
Request A Quote
News
GUANGZHOU TECHWAY MACHINERY CORPORATION
Home ProductsCrane Loading Deck

2800mm Width Retractable Super deck Access Platform MLP2800

China GUANGZHOU TECHWAY MACHINERY CORPORATION certification
China GUANGZHOU TECHWAY MACHINERY CORPORATION certification
TW is my very reliable partner for building hoist, we have been working with each other since year 2015, and I am very happy with their performance and support. Very glad they have newly opened the most advanced production facilities in China, and hope I could be there for their official ceremony once the COVID is over.

—— Lederberg Sha***

Their material loading bay is really fantastic, with their qualified products, now we are expanding our rental & sales business from Sydney to more cities in Australia.

—— Jay JAW***

I'm Online Chat Now

2800mm Width Retractable Super deck Access Platform MLP2800

2800mm Width Retractable Super deck Access Platform MLP2800
2800mm Width Retractable Super deck Access Platform MLP2800
video play

Large Image :  2800mm Width Retractable Super deck Access Platform MLP2800

Product Details:
Place of Origin: China
Brand Name: TECHWAY
Certification: Mill Certificate & Full-load Certificate
Model Number: MLP2800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD9,200.00-10,300.00 per unit

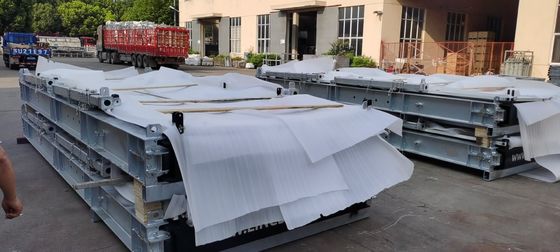

Packaging Details: 2 Units in 1x20'GP, Nude in Container
Delivery Time: 40 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 100 Units per month
Detailed Product Description
Max. Outboard Length: 5.3m Painting: Sand Blasting & Epoxy Paint
Platform Width: 2.8m Treatment: Main Frame & Props Are With Hot Dip Galvanization
Max. Load: 5000kg Color: As Per Customer
High Light:

2800mm Width Retractable Super Deck

,

Retractable Super Deck

2800mm Width Retractable Superdeck Access Platform MLP2800



Support Props Height
The standard props allow a minimum height of 2400mm and a maximum height of 3300mm.Consult

your dealer for other special requirements. We can design special props according to your requirements. Furthermore, MLP 2200-L, MLP 2200-H, MLP 2600,MLP 3200, MLP 4200 can also be fixed to the concrete slab with bolts through slab if the customer needs.



Forces on the Building or Structure
The deadweight and load of the load deck apply to the ceiling and the concrete slab by the support

props or the fixing anchoring bolts. The forces on the ceiling or the slab floor of the building can be provided.



Function

MLP series retractable loading deck is a unique product to improve materials handling efficiency and safety for the multi-storey and high rise construction sectors. It offers a cost effective method of delivering goods to different
levels of a building when used with a crane. When goods are required to be delivered toa particular floor levels,
all the decks installed above that level can be retracted, enabling the crane to operate unobstructed.



MLP series retractable load decks have four types: MLP 2200-L, MLP 2200, MLP 3200 and MLP 4200 and the allowable maximum load capacity for uniform distribution load is 5t.



The type MLP 2200 is designed to be able to transport with container.





Crane Loading Deck Features

1. Easy pull/push system

2. Max. outboard length: 5.3m

3. Max. load capacity: 5ton

4. Platform width: 3.2m

5. With adjustable props for different floor heights

6. Compact design makes the transportation & installation much easier

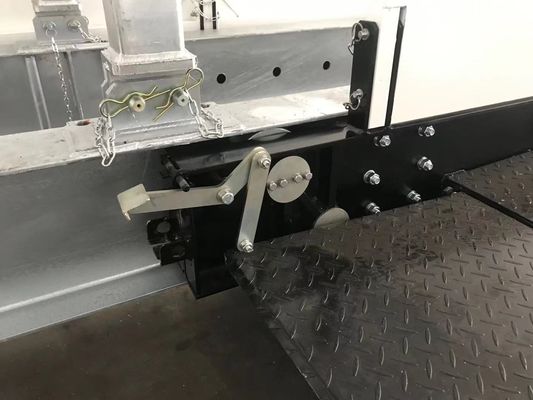

7. With easy locking system

8. All pins are with chains to keep them from falling or losing





Models

The standard props allow a minimum height of 2400mm and a maximum height of 3300mm.Please consult with your dealer for other special requirements. We can design special props according to your requirements. Furthermore, MLP 2200-L, MLP 2200-H, MLP 2600,MLP 3200, MLP 4200 can also be fixed to the concrete slab with bolts through slabs according to actual needs.



Application

The Crane Loading Deck is specially designed for coping with the challenges of multi-story construction sites. Our crane loading decks make access for tools and materials to different levels of multi-story construction sites safe and simple, while increase the working efficiency of tower cranes.





2800mm Width Retractable Super deck Access Platform MLP2800 0



2800mm Width Retractable Super deck Access Platform MLP2800 1
