Stainless Steel Made Industrial Explosion Proof Rack Pinion Elevator With Automatical Running Function

Stainless Steel Made Industrial Explosion Proof Rack Pinion Elevator With Automatical Running Function
Stainless Steel Made Industrial Explosion Proof Rack Pinion Elevator With Automatical Running Function Stainless Steel Made Industrial Explosion Proof Rack Pinion Elevator With Automatical Running Function Stainless Steel Made Industrial Explosion Proof Rack Pinion Elevator With Automatical Running Function

Large Image :  Stainless Steel Made Industrial Explosion Proof Rack Pinion Elevator With Automatical Running Function

Product Details:
Place of Origin: China
Brand Name: TECHWAY
Certification: CE, ATEX
Model Number: SE100-Ex
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: To Be Negotiated
Delivery Time: 120Days
Payment Terms: T/T, L/C
Supply Ability: 500 Units per year
Detailed Product Description
Explosion Proof Level: Exd II B T4 / Exd II C T4 Surface Treatment: Hot Dip Galvanization
Advanced Safety Features: Yes Specialized For Hazardous Environments: Yes
Load Capacity: 1 Ton Power Supply: 380V/50Hz,440V/60Hz
Material: High Strength Steel/Stainless Steel Safety Device: Anti-fall Safety Device, Overload Protection Device, Limit Switch
High Light:

Industrial Explosion Proof Rack Pinion Elevator

,

Explosion Proof Rack Pinion Elevator

Product Description:

The hoist is designed to meet the highest safety standards and is equipped with various safety devices, including an anti-fall safety device, overload protection device, and limit switch. These safety features ensure that the hoist operates safely and efficiently, minimizing the risk of accidents and injuries.

The Explosion Proof Building Hoist is built with high-quality steel and is designed to withstand harsh environments, with an Exd II B T4 explosion-proof level, making it suitable for use in hazardous areas.

The hoist is powered by a 380V/50Hz or 440V/60Hz power supply, making it suitable for use in a wide range of locations. The hoist is also an ATEX rack and pinion hoist, which means it complies with European Union regulations for equipment used in explosive atmospheres.

The Explosion Proof Building Hoist is easy to operate and maintain, with a user-friendly control panel that allows for precise control of the hoist's movements. The hoist is also designed with a modular structure, which makes it easy to assemble and disassemble, reducing downtime and increasing productivity.

In summary, the Explosion Proof Building Hoist is a safe, efficient, and reliable solution for transporting materials and personnel in hazardous environments. Its explosion-proof design and high-quality safety features make it an ideal choice for construction sites, industrial facilities, and other locations that require a durable and reliable hoist.



Features:

  • Product Name: Explosion Proof Building Hoist
  • Cage Size: 2.2*1.5*2.2m
  • Advanced safety features: Yes
  • Motor Power: 2*11kW
  • Max Lifting Height: 150m
  • Material: Steel





Technical Parameters:

Model SC100/100
Max Lifting Height 150m
Product Name Explosion Proof Rack & Pinion Elevators for Passenger and Materials in Hazardous Environment
Cage Size 2.2*1.5*2.2m
Explosion Proof Level Exd II B T4/ Exd II C T4
Control System VFD Control System
Lifting Speed 0~33m/min
Motor Power 2*11kW
Customizable Yes
Material Steel


Applications:

The SE100-Ex is designed to be used in a variety of applications including construction, oil and gas, mining, and chemical plants. It can be used to transport personnel and materials up and down buildings, towers, and other structures. It's a perfect solution for situations where an explosion proof elevator is required.

With a load capacity of 1 ton, lifting speed of 0~33m/min and motor power of 2*11kW, this ex-proof passenger & material hoist is capable of handling heavy loads quickly and efficiently. The hoist is customizable to meet specific customer requirements and can be manufactured to meet the needs of various industries, such as mines, chemical plants, oil field, refineries and other facilities, where the presence of flammable gases or dust make it impossible for the general elevator.

It is an excellent choice for companies that require explosion proof industrial elevators.



Support and Services:

Our Explosion Proof Building Hoist product comes with comprehensive technical support and services to ensure smooth operation and maintenance. Our team of experienced professionals are available to provide installation guidance, training, troubleshooting assistance, and equipment repair services. We also offer regular maintenance and inspection services to ensure the safety and efficiency of your hoist. Our technical support and services are designed to minimize downtime and maximize productivity, so you can focus on your business operations without worrying about equipment performance.



FAQ:

1.

What is the mast section dimensions of the explosion proof building hoist?

The mast section dimension of the explosion proof building hoist is 650x650x1508mm.

2.

What is the material of the explosion proof building hoist's wall panels?

The wall panels of the explosion proof building hoist can be stainless steel or industrial grade alumina plates according to your choice.

3.

Does the explosion proof building hoist have emergency descending device?

Yes, there are emergency descending devices both inside the cabin or on the ground to bring down the explosion proof hoist down to the nest floor for evacuation when emergency happens.

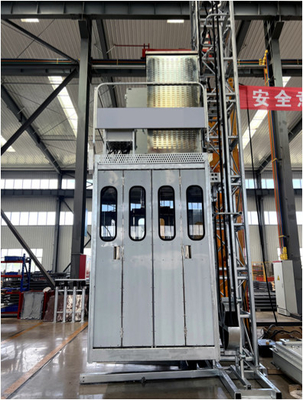

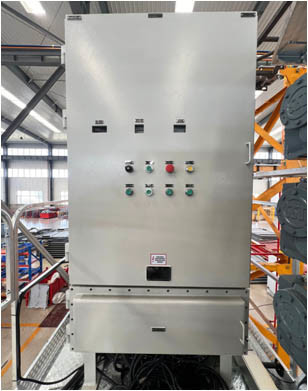

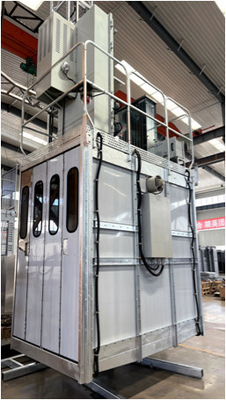

Stainless Steel Made Industrial Explosion Proof Rack Pinion Elevator With Automatical Running Function 0Stainless Steel Made Industrial Explosion Proof Rack Pinion Elevator With Automatical Running Function 1
